EL15P NEW

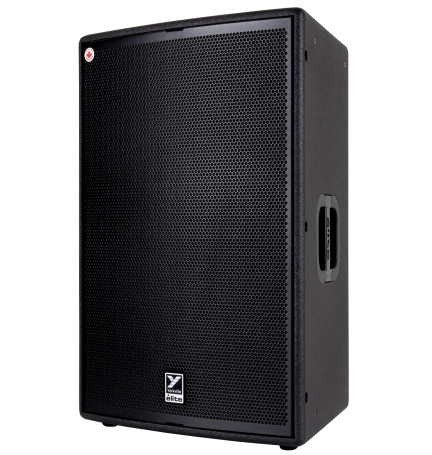

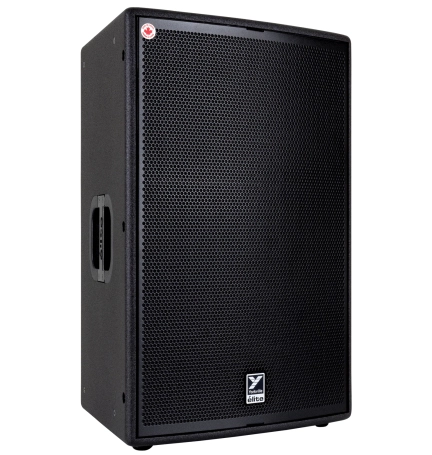

Elite 15” Powered Loudspeaker
Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users.
The EL15P is a full-range powered speaker with a 15" neodymium woofer that delivers 2500 watts of peak power (1250 watts program).
The rugged cabinet is constructed from high-quality birch and features a pole mount adapter and integrated flypoints. An optional bracket (EL15PBRACKET) is available separately for multi-cabinet hangs.

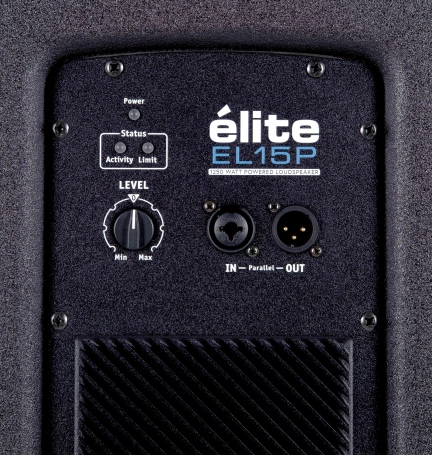

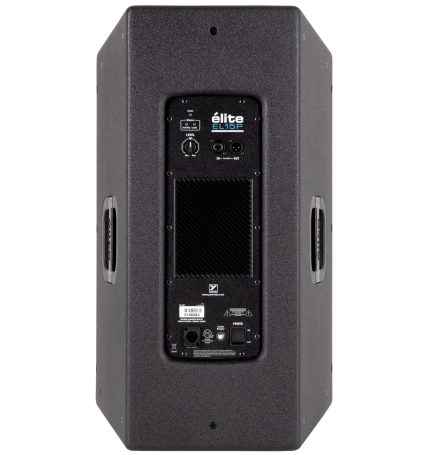

The rear panel features an XLR / 1/4" input jack, XLR output, and powerCON® TRUE1 compatible connector.
Combine the EL15P with the EL12M stage monitor and EL18S or EL21S subwoofer for uncompromising sound, performance, and made-in-Canada reliability that earns the Elite name.
Features
- 2500 W Peak Power (1250 W Program)
- 15" with 3" Voice Coil and Neodymium Magnet
- ABS Horn with 1.4" Exit, 3" Voice Coil / Neodymium Magnet
- Onboard Limiter
- powerCON® TRUE1 Compatible Connector
- 15 mm Birch Plywood Construction
- Made in Canada
Specifications
| System Type | Powered Loudspeaker |
| Power Rating | 2500 W Peak (1250 W Program) |
| Max SPL | 139 dB Peak (127 dB Continuous) |
| Frequency Response | 50 Hz - 20 kHz (+/- 3 dB) |
| Dispersion (H x V) | 60° x 40° |
| Crossover Frequency | 850 Hz |
| HF Driver(s) | ABS Horn with 1.4” exit, 3” Voice Coil, and Neodymium Magnet |
| HF Dispersion (°H x °V) | 60° x 40° |
| LF Driver(s) | 15" with 3" Voice Coil and Neodymium Magnet |
| Power Cable | powerCON® TRUE1 Compatible Connector |
| Power Consumption (typ/max) | 3A, 7.5A |
| Inputs | 1x Combo-jack (XLR / 1/4” TRS) |
| Outputs | 1x XLR |
| Level Controls | Yes |
| LED Indicators | Power, Activity, Protection |
| Bar Handles | 2x Side |
| Flypoints | 4x Top, 4x Bottom, 2x Pull Back (1/4-20) |
| Optional Flying Hardware | EL15PBRACKET - For Arraying 2 - 3 Cabinets (Sold Separately) |

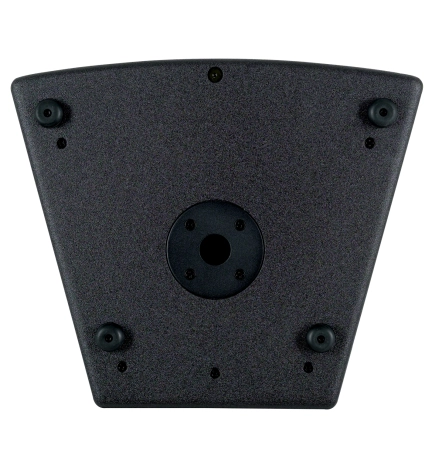

| Pole Mount Adapter | 1x Bottom |
| Enclosure Materials | 15 mm Birch Plywood |
| Grille | Powder-Coated Steel |
| Covering / Finish | Textured Paint |
| Dimensions (DWH) | 15.8" x 18.5" x 28.6" (40.2 cm x 47 cm x 72.7 cm) |
| Weight | 62 lbs / 28 kg |
Specifications subject to change without notice
