EL12M NEW
Elite 12” Powered Stage Monitor

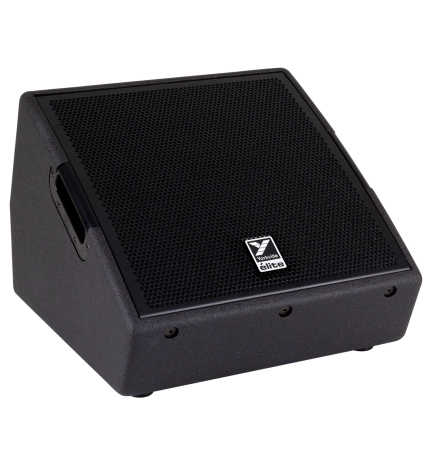

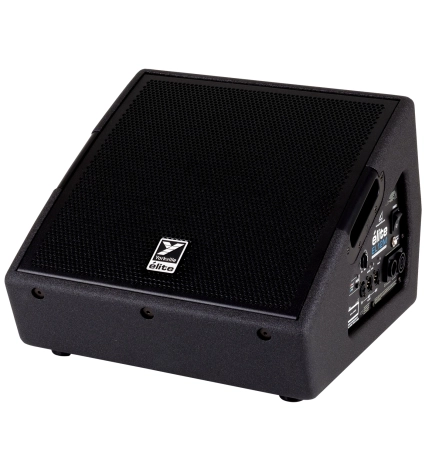

The EL12M is the first dedicated powered stage monitor from Yorkville Sound.
It delivers 1200 watts of peak power (600 watts program) through a 12" coaxial speaker and 1" high-frequency driver in a stage-ready enclosure that weighs less than 40 pounds.
Its two selectable monitor modes are voiced for vocals, and its flat mode is ideal for instrument sources like synthesizers, electronic drum kits, or for use as an FRFR solution for amp modelers. It also features an XLR / 1/4" input jack, two XLR outputs, and powerCON® TRUE1 compatible input and output connectors, so it integrates easily into any PA system.
Portable, powerful, and built like a tank, the EL12M was carefully designed for professional performance on stage.
Features
- 1200 W Peak Power (600 W Program)
- 12" Coaxial Woofer with 2.5" Voice Coil
- 1" HF Driver with 1.75" Voice Coil
- 3 Voicing Modes
- Onboard Limiter

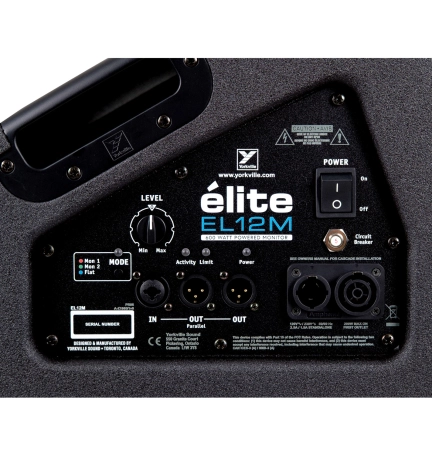

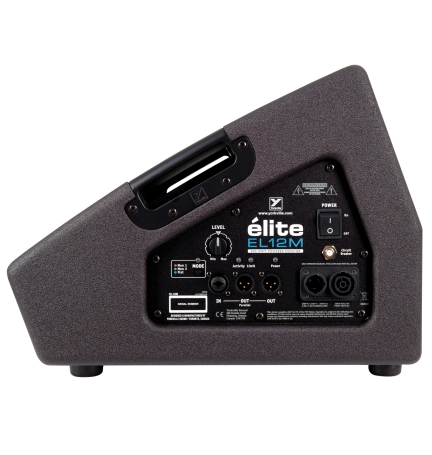

- Combi-Jack XLR / 1/4" Input and 2 XLR Outputs
- powerCON® TRUE1 Compatible Input and Output Connectors
- 15mm Birch Plywood Construction
- Made in Canada
Specifications
| System Type | Powered Monitor |
| Power Rating | 1200 W Peak (600 W Program) |
| Max SPL | 132 dB Peak (120 dB Continuous) |
| Frequency Response | 60 Hz - 20 kHz (+/- 3 dB) |
| Dispersion (H x V) | 60° x 60° |
| Crossover Frequency | 1500 Hz |
| HF Driver(s) | 1" with 1.75" Voice Coil |
| LF Driver(s) | 12" Co-axial Woofer with 2.5" Voice Coil |
| Power Cable | powerCON® TRUE1 Connectors (Input / Output) |
| Power Consumption (typ/max) | 2.5A, 6A |
| Inputs | 1x Combo-jack (XLR / 1/4”) |
| Outputs | 2x XLR |
| Level Controls | Yes |
| EQ Controls | Mon 1, Mon 2, and Flat Modes |
| LED Indicators | Power, Activity, Protection, Modes |
| Bar Handles | 2x Side, 1x Bottom |
| Pole Mount Adapter | No |
| Enclosure Materials | 15mm Birch Plywood |

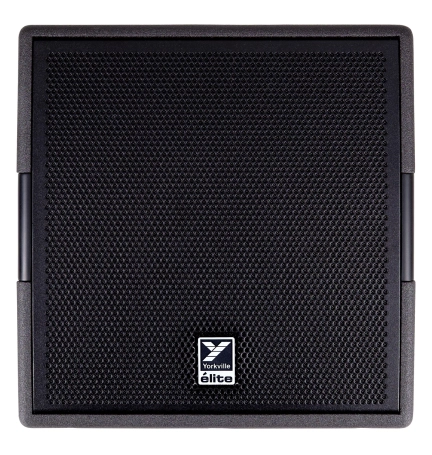

| Grille | Powder-Coated Steel |
| Covering / Finish | Textured Paint |
| Dimensions (DWH) | 17" x 16.3" x 12.2" (43.2 cm x 33.8 cm x 31 cm) |
| Weight | 38.7 lbs / 17.6 kg |
Specifications subject to change without notice
