EL21S NEW
Elite 21” Powered Subwoofer
Streamlined and straightforward, our new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users.
The EL21S is a powered subwoofer with a 21" neodymium woofer that delivers 3600 watts of peak power (2400 watts program). It goes down to 32 Hz for powerful bass response that will shake any venue to its foundation.

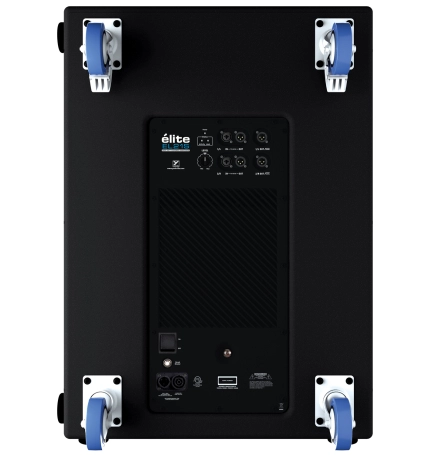

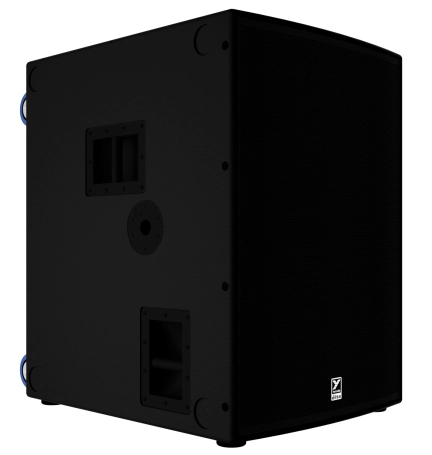

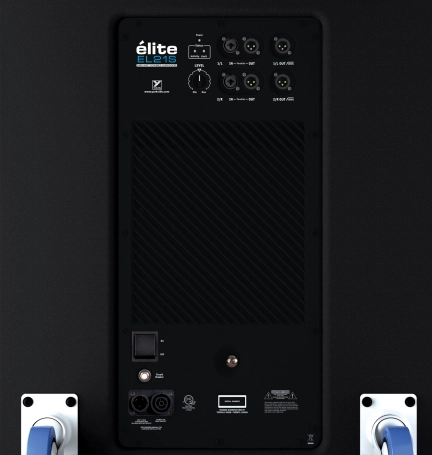

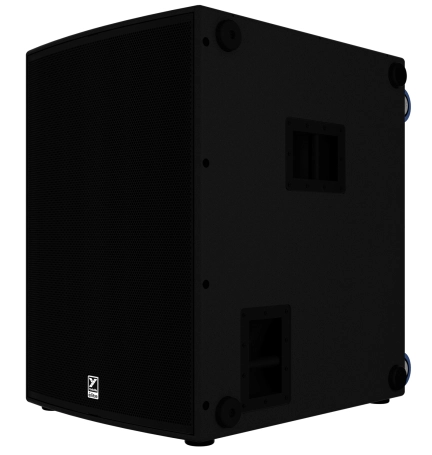

The rugged cabinet is constructed from high-quality birch and features pole mount adapters on the top and side. The rear panel features two XLR inputs, full-range and high-passed XLR outputs, and powerCON® TRUE1 compatible input and output connectors.
Need a more compact option? Check out the EL18S.
Features
- 3600 W Peak Power (2400 W Program)
- 21" Neodymium Woofer with Dual 4.5" Voice Coils
- Onboard Limiter
- 2 XLR Inputs with Full-Range Parallel Outputs
- 2 High-Passed XLR Outputs
- 15 mm Birch Plywood Construction
- Made in Canada
Specifications
| System Type | Powered Subwoofer |
| Power Rating | 3600 W Peak (2400 W Program) |
| Max SPL | 142 dB Peak (136 dB Continuous) |
| Frequency Response | 32 Hz - 100 Hz (+/- 3 dB) |
| Crossover Frequency | 100 Hz |
| LF Driver(s) | 21" Neodymium with Dual 4.5" Voice Coils |
| Power Cable | powerCON® TRUE1 Connectors (Input / Output) |
| Power Consumption (typ/max) | 6.5A, 12A |
| Inputs | 2x Combo-jack (XLR / 1/4” TRS) |
| Outputs | 2x XLR High-Pass 2x XLR Link (Full Range) |
| Level Controls | Yes |
| LED Indicators | Power, Activity, Protection |
| Wheels | 2x Rigid, 2x Swivel Casters |
| Bar Handles | 1x Top, 4x Side, 1x Bottom |
| Flying Hardware | No |
| Pole Mount Adapter | 1x Top, 1x Side |
| Enclosure Materials | 15mm Birch Plywood |
| Grille | Powder-Coated Steel |
| Covering / Finish | Textured Paint |
| Dimensions (DWH) | 31.2" x 25.9" x 36" (Depth with Casters 36.2”) 79.3 cm x 65.8 cm x 92 cm (Depth with Casters 92”) |
| Weight | 197.5 lbs / 90 kg |
Specifications subject to change without notice
