sa115s
Synergy 15” Powered Subwoofer
The SA115S is the most compact powered subwoofer in the Synergy series, and an ideal companion for the SA102 full-range loudspeaker. Featuring a Tom Danley patented 15" tapped-horn design, it delivers an astonishing 9000 watts of peak power (4500 watts program).

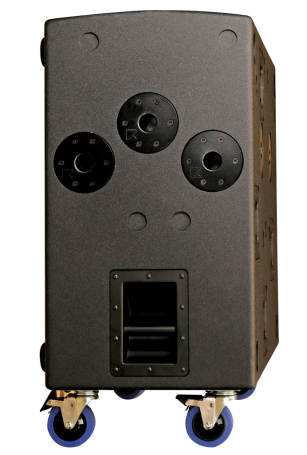

The key features of the Synergy series are versatility and ease of use. The SA115S has multiple stand adapters on the top and sides, so SA102 top boxes can be positioned for optimal coverage in any environment.
For mid-sized and large venues that need big sound and a small footprint, the SA115S packs the exceptional tone of a Synergy subwoofer into a space-saving enclosure that fits comfortably onto any stage.
Features
- 9000 W Peak Power (4500 W Program)
- 15” Woofer with 4.5” Voice Coil
- Tapped Horn Design
- Exceptionally High Output and Deep Bass
- Made in Canada
Specifications
| System Type | Powered Subwoofer |
| Power Rating | 9000 W Peak (4500 W Program) |
| Measured Max SPL (C-Weighted CM Max Hold) | 135 dB Peak (129 dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 31 Hz - 100 Hz |
| Crossover Frequency | 100 Hz |
| Cabinet Configuration | Tapped Horn |
| LF Driver(s) | 1x 15" Neodymium with 4.5" Voice Coil |
| LF Protection | Excursion, Voice Coil Thermal (RMS) |
| LF Amplifier Type | Class D |
| Cooling Scheme | Convection |
| Power Cable | Removable Locking powerCON® TRUE1 Input and Loop Thru Output |
| In / Out Connections | 1x XLR Inputs / 2x XLR Outputs |
| Input Sensitivity (Vrms Sine) | Line In 1.4 at Center, 0.56 at Max |
| Controls | Thermal Limiter Advance for Power Consumption Management |
| Level Controls | -∞ to +8 dB |
| Limiter | Excursion, Thermal (RMS), Clipping |
| LED Indicators | Power, Excursion Limit, Thermal (RMS) Limit, Input Clip, Activity |
| Bar Handles | 5 (4x Side, 1 Top) |
| Pole Mount Adapter (1 3/8 | 5 (3x Top, 2x Side) |
| Enclosure Materials | Multi-ply 15 mm Birch Plywood |
| Stacking Feature | Interlocking Rubber Feet (Sides) |
| Covering / Finish | Paint |
| Dimensions (DWH) | 36.6” (with Casters) x 17.8” x 35.3” (93 cm (with Casters) x 45 cm x 82 cm) |
| Weight | 165 lbs / 74.9 kg |
Specifications subject to change without notice
