ps12s

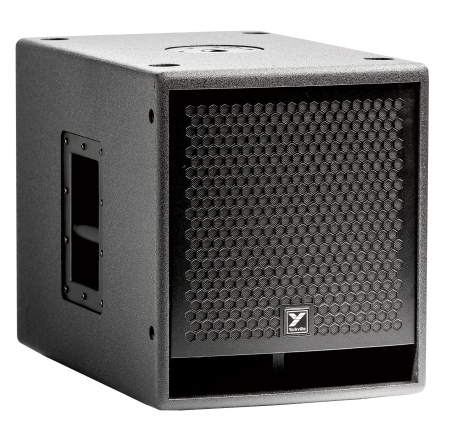

Parasource 12" Powered Subwoofer
Parasource subwoofers are engineered to pack huge bass into the smallest possible space, and are an ideal choice for small to medium venues.
The PS12S is the most compact subwoofer in the Parasource series. It features a 12” driver, 1800 watts of peak power (900 watts program), and a maximum peak SPL of 129 dB. It can be used with any top box, and is the perfect pairing for a PS10P full-range speaker.

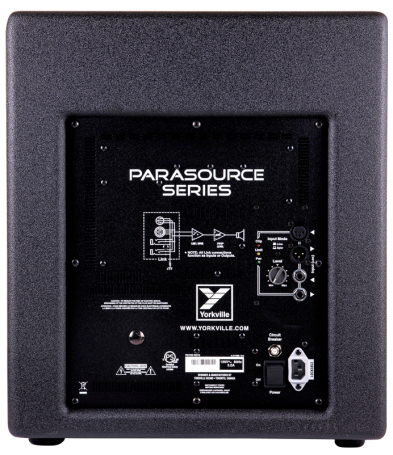

The rear panel features XLR and 1/4" TRS inputs and Link outputs, and can accept line or speaker level signals.
With solid birch cabinet construction and a high-efficiency Class D amplifier, the PS12S provides powerful bass and durable, reliable long-term performance.
Features
- 1800 W Peak Power (900 W Program)
- Max SPL 129 dB Peak (123 dB Continuous)
- 12" Woofer with 3" Voice Coil
- Compact Bass Reflex Design
- XLR and 1/4" TRS Inputs and Link Outputs
- Accepts Line or Speaker Level Signals
- Solid 15 mm Birch Cabinet Construction
- Integrated Pole Mount Adaptor and All-Metal Handles
- Made in Canada
Specifications
| System Type | Powered Subwoofer |
| Power Rating | 1800 W Peak (900 W Program) |
| Max SPL | 129 dB Peak (123 dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 45 Hz - 100 Hz |
| Crossover Frequency | 100 Hz |
| Driver Configuration | 1x 12" (Bass Reflex Cabinet) |
| LF Driver(s) | 1x 12" Long-Throw with 3" Voice Coil |
| LF Protection | Thermal / Peak Limiter |
| Cooling Scheme | Passive |
| Power Consumption | 3.3 A @ 120 VAC |
| Inputs | 1x XLR (Line) 1x 1/4" TRS (Line / Speaker) |
| Outputs | 1x XLR (Line) 1x 1/4" TRS (Line / Speaker) |
| Controls | Output Level Line / Speaker Switch |
| LED Indicators | Power, Limit, Clip |
| Bar Handles | 2 (1 Left Side, 1 Right Side) |
| Pole Mount Adapter (1 3/8 | 1 (Top) |
| Enclosure Materials | 15 mm Birch |
| Baffle Material | 15 mm Birch |
| Grille | Powder-Coated Perforated Steel |
| Covering / Finish | Paint |
| Dimensions (DWH) | 22.8" x 14.7" x 16.85" (57.9 cm x 37.4 cm x 42.8 cm) |
| Weight | 65 lbs / 29.6 kg |
Specifications subject to change without notice
