sa153
Synergy 15” Powered Loudspeaker
The Synergy array series is Yorkville’s most powerful and flexible point source system, and the SA153 is the series’ flagship full-range loudspeaker. It is easy to set up and use, and offers the power to handle club, outdoor theatre, or arena shows.
The speaker features two important technologies: the Paraline Lens and the Synergy Horn. The unique geometry of the patented Paraline Lens produces a precisely shaped wavefront that matches the horn’s physical coverage pattern. It provides a continuous horn throat from cabinet to cabinet on the horizontal plane, virtually eliminating the comb filtering associated with traditionally arrayed cabinets.
The Paraline Lens is fed by a high-output driver for mid and high frequencies, and the Synergy Horn configuration seamlessly couples the output of the Paraline Lens with the 15” woofer. The horn utilizes the entire front area of the cabinet, maximizing efficiency and directivity.
Pair with the SA315S powered subwoofer for the ultimate scaleable point source system.
Features
- 5000 W Peak Power (2600 W Program)
- 15” LF Woofer with 3.5” Voice Coil
- MF/HF Coaxial Compression Driver
- Incorporates Tom Danley’s Patented Paraline Lens and Synergy Horn Technologies
- 1 XLR Input, 2 XLR Outputs
- Removable Locking powerCON® TRUE1 Input and Loop Thru Output
- Extremely Well-Controlled Coverage Pattern
- Simple and Secure Rigging Hardware
- Made in Canada
Specifications
| System Type | Full-Range Powered Speaker |
| Power Rating | 5000 W Peak Power (2600 W Program) |
| Measured Max SPL (C-Weighted CM Max Hold) | 137 dB Peak (131 dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 55 Hz - 18 kHz |
| Dispersion (H x V) | 22.5° x 45° Asymmetrical (10° Up, 35° Down) |
| Crossover Frequency | 400 Hz, 7 kHz |
| Cabinet Configuration | Patented Synergy Horn and Paraline Lens Technology |
| Driver Configuration | 1x 15" LF Woofer, 1x MF / HF Coaxial Compression Driver |
| HF Driver(s) | 1.8" Diaphragm / Voice Coil Annular Coaxial |
| HF Protection | Peak and Average Limiting |
| MF Driver(s) | 3.5" Diaphragm / Voice Coil Annular Coaxial |
| MF Protection | Peak and Average Limiting |
| LF Driver(s) | 15" Neodymium Woofer with 3.5" Voice Coil |
| LF Protection | Excursion, RMS |
| HF Power Amplifier (Watts) | 300 W |
| HF Amplifier Type | 3-Tier Class H |
| MF Power Amplifier (Watts) | 300 W |
| MF Amplifier Type | 3-Tier Class H |
| LF Power Amplifier (Watts) | 2000 W |
| LF Amplifier Type | Class D |
| Cooling Scheme | Convection |
| Power Cable | Removable Locking powerCON® TRUE1 Input and Loop Thru Output |
| Power Consumption (typ/max) | 220 VA / 400 VA |

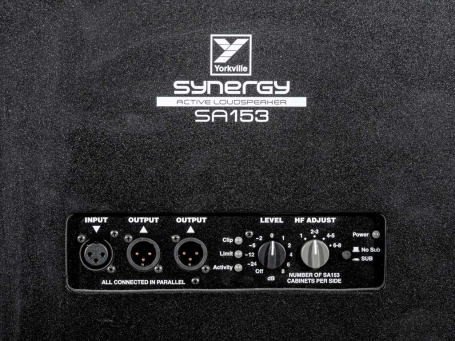

| Inputs | 1x XLR |
| Input Sensitivity (Vrms Sine) | Line In 1.4 at Centre, 0.56 at Max |
| Level Controls | Volume |
| EQ Controls | HF Adjust, Mode Switch (Sub / No Sub) |
| LED Indicators | Power, Limit, Clip |
| Bar Handles | 2 (1x Each Side) |
| Enclosure Materials | Multi-ply 15 mm Birch Plywood |

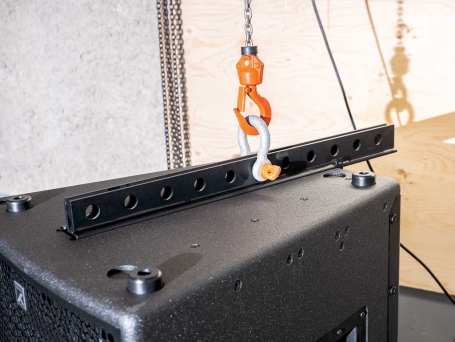

| Standard Rigging Hardware | Rail and Lockbar Rigging System (Top and Bottom) |
| Stacking Feature | Interlocking UHMW Feet (Top and Bottom) |
| Covering / Finish | Paint |
| Dimensions (DWH) | 24” x 21” x 26.5” (60.9 cm x 53.3 cm x 67.3 cm) |
| Weight | 115 lbs / 52.1 kg |
Specifications subject to change without notice
