sa102
Synergy 10” Powered Loudspeaker
The SA102 extends the Synergy array series with a smaller, lighter full-range powered cabinet. It’s ideal for medium and large venues, outdoor festivals, and inclined-seating theatres.
The SA102 features a patented Paraline Lens to create a precisely shaped wavefront that matches the horn’s physical coverage pattern. It also uses Synergy Horn technology to couple the Paraline Lens with a 10-inch high-output woofer. The result is increased efficiency and directivity, without the comb-filtering often associated with arrayed horns and woofers.
The cabinet can be used vertically or horizontally, and vertical coverage is asymmetrical so users can change the directivity by simply inverting the cabinet, without the complications of steering software or physically tilting the array.

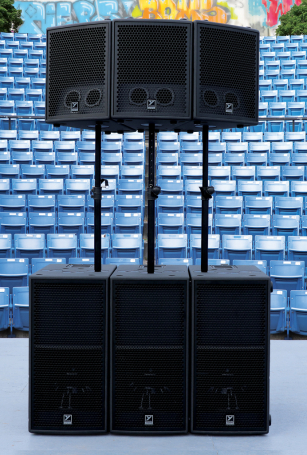

Pair with the SA115S subwoofer for the ultimate point source system.
Features
- 2400 W Peak Power (1200 W Program)
- 10” LF Woofer with 3” Voice Coil
- 4” HF Driver
- Incorporates Tom Danley’s Patented Paraline Lens and Synergy Horn Technologies
- 1x XLR Input, 2x XLR Outputs
- Removable Locking powerCON® TRUE1 Input and Loop Thru Output
- Supports Vertical, Inverted Vertical, and Horizontal Placement
- Extremely Well-Controlled Coverage Pattern
- Made in Canada
Specifications
| System Type | Full-Range Powered Speaker |
| Power Rating | 2400 W Peak (1200 W Program) |
| Measured Max SPL (C-Weighted CM Max Hold) | 133 dB Peak, 127 dB Continuous |
| Frequency Response (Hz +/- 3dB) | 60 Hz - 18 kHz |
| Dispersion (H x V) | 30° x 45° Asymmetrical (7° Up, 38° Down) |
| Crossover Frequency | 750 Hz |
| Cabinet Configuration | Patented Synergy Horn and Paraline Lens Technology |
| Driver Configuration | 10" LF Woofer, 4” HF Compression Driver |
| HF Driver(s) | 4" Diaphragm, Neodymium |
| HF Protection | Peak and Average Limiting |
| LF Driver(s) | 10" Neodymium Woofer with 3" Voice Coil |
| LF Protection | Excursion, RMS |
| HF Power Amplifier (Watts) | 500 W Peak (300 W Program) |
| HF Amplifier Type | 3-Tier Class H |
| LF Power Amplifier (Watts) | 1600 W Peak (900 W Program) |
| LF Amplifier Type | Class D |
| Cooling Scheme | Convection |
| Power Cable | Removable Locking powerCON® TRUE1 Input and Loop Thru Output |
| Power Consumption | 200 VA / 400 VA |

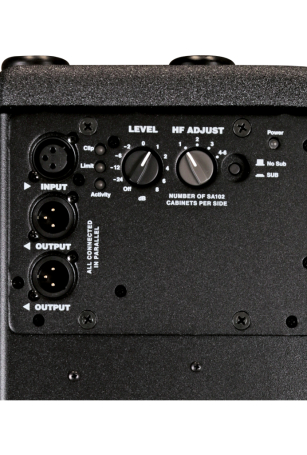

| Inputs | 1x XLR |
| Input Sensitivity (Vrms Sine) | Line In 1.4 at Centre, 0.56 at Max |
| Level Controls | Volume |
| EQ Controls | HF Adjust, Mode Switch (Sub / No Sub) |
| LED Indicators | Power, Limit, Clip |
| Bar Handles | 1 (1x Each Side) |
| Enclosure Materials | Multi-ply 15 mm Birch Plywood |
| Standard Rigging Hardware | 1/4" - 20 Thread Eyebolts (4x Top, 4x Bottom) |
| Stacking Feature | Interlocking UHMW Feet (Top and Bottom) |
| Covering / Finish | Paint |
| Dimensions (DWH) | 21.3” x 17.4” x 22.8” (54 cm x 45 cm x 58 cm) |
| Weight | 69 lbs / 31.3 kg |
Specifications subject to change without notice
