exm-pro12 NEW
EXM Battery-Powered PA Speaker
The EXM Pro12 represents a new milestone from Yorkville Sound, the leader in battery-powered PA systems. It is our first loudspeaker with a 48V battery, designed for endurance and high output.
It offers 12 hours of battery life on a single charge, and delivers 1900 watts of peak power and 800 watts program into a 12 neodymium woofer and 6.5 / 1 coaxial high-frequency driver.
The EXM Pro12 features an onboard 3-channel mixer, so it can be used without an external console, a USB charging port for mobile devices, and Bluetooth connectivity including wireless stereo playback between two cabinets.
The EXM Pro12 is Yorkville Sounds most powerful battery-powered speaker ever, and continues our commitment to power extraordinary gigs in extraordinary places.
Features
- 48V Battery with 12 Hour Battery Life
- 12” Neodymium Woofer
- 6.5” / 1” HF Coaxial Driver

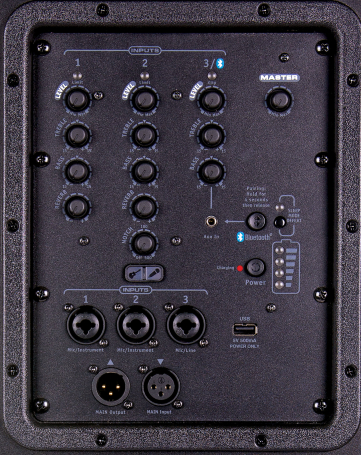

- Onboard Mixer with 3 Input Channels
- Integrated Digital Reverb
- Stereo Bluetooth® Audio Streaming
- USB Charging Port for External Devices
- Integrated Speaker Stand Mount
- Made in Canada
Specifications
| System Type | 3-way Battery-Powered PA Speaker |
| Power Rating | 1600 W Peak (800 W Program) |
| Max SPL | 125dB continuous |
| Frequency Response (Hz +/- 3dB) | 45 Hz - 20 kHz |
| Dispersion (H x V) | 70° x 70° |
| Cabinet Configuration | 12” |
| HF Driver(s) | 6.5-inch / 1-inch HF Exit Coaxial |
| LF Driver(s) | 12” Neodymium |
| In / Out Connections | XLR (1x Main Input, 1x Main Output) |
| Channel 1 Input | 1x Combo-jack (XLR / 1/4”) |
| Channel 1 Controls | Level, Bass, Treble, Reverb |
| Channel 2 Input | 1x Combo-jack (XLR / 1/4”) |
| Channel 2 Controls | Level, Bass, Treble, Reverb, Acoustic Guitar EQ & Notch |
| Channel 3 Input | 1x Combo-jack (XLR / 1/4”), 1/8" TRS Stereo Jack, Bluetooth® |
| Channel 3 Controls | Level, Bass, Treble |
| Master Volume Control | Yes |
| LED Indicators | Power, Bluetooth, Battery Level, Sleep, Charging Status, Limit, Guitar /Mic, Limit, Clip |
| Bar Handles | 3 (2 Side, 1 Top) |
| Pole Mount Adapter (1 3/8 | 1 (Bottom) |
| Enclosure Materials | ABS Coated Birch Plywood |
| Grille | Powdered Coated Perforated Steel |
| Dimensions (DWH) | 14” x 16“ x 27” (35.6 cm x 40.6 cm x 68.6 cm) |
| Weight | 66.8 lbs / 30.3 kg |
Specifications subject to change without notice
