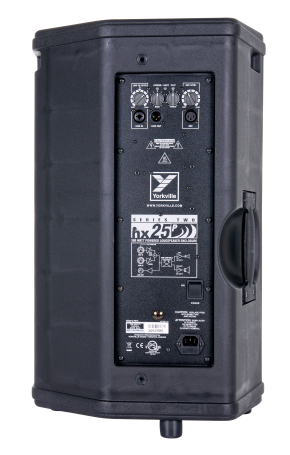

Two-band EQ, XLR balanced microphone input as will as balanced combi-jack line input on the power module means the NX25P-2 can be easily connected to any source and quickly EQ balanced for the room. An XLR balanced line output allows multiple cabinets to be linked together for use in an array or for easy distribution around a large room when used as repeater cabinets.
The horn amplifier produces loud clean transients to keep up with the high output of the Class-AB two-tier amplifier driving the woofer. The high efficiency Class-H topology delivers higher headroom and lower operating temperature, making it the ideal amplification solution for this active loudspeaker.

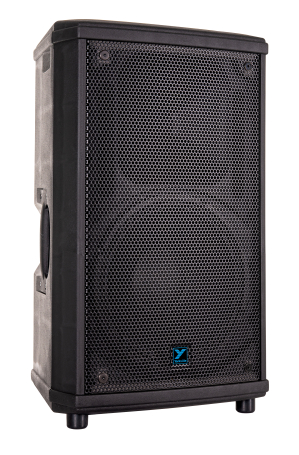

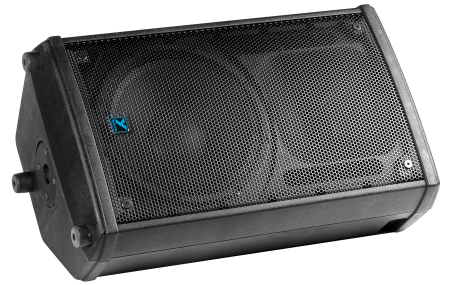

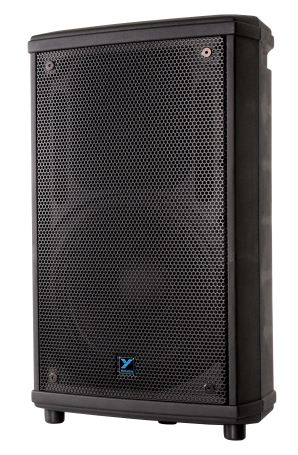

The NX25P-2 enclosure, like all cabinets in the NX loudspeaker line, has been molded for maximum versatility. The trapezoid box is ideal for mounting in arrays, or for use as a monitor cabinet with well-protected inputs and controls.
The NX25P-2 can easily be used in any orientation, and close to walls, floors and in close arrays with multiple cabinets. Particular care was taken designing the components to reduce extraneous heat production.
| System Type | 2-Way |
| Active or Passive | Active |
| Power Rating (Watts) | 300 Watts (600 Watts Peak) |
| Biampable | Self Powered |
| Biamp Operation Only | Yes |
| Max SPL (dB) | 124dB Peak (120dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 55 - 18k |
| Crossover Frequency (Hz) | 3k |
| Driver Configuration | 12-inch / 1-inch |
| HF Driver(s) | 1.4-inch coil / 1-inch exit PETP Driver |
| HF Dispersion (°H x °V) | 80 x 50 |
| HF Protection | Peak Limiter |
| LF Driver(s) | 12-inch Ceramic Magnet |
| HF Amplifier Type | Class A/B |
| LF Amplifier Type | Two Tier Class H |
| Power Cable | Yes |
| Power Switch | Yes |
| Power Consumption (typ/max) | 120 / 310 VA |
| Inputs | 2 |
| Inputs - 1/4" Jacks | 1 Line / 1 Mic (XLR Combi jacks) |
| Mixer Controls | Mic Gain Line In Gain Low and Hi EQ |
| Limiter | Yes |
| LED Indicators | Power/Activity/Limit |
| Feet | Yes |
| Flying Hardware | 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback) |
| Pole Mount Adapter (1 3/8"-3.5cm) | Yes |
| Enclosure Materials | Molded Polypropylene |
| Grille | Perforated Metal |
| Dimensions (DWH xbackW, inches) | 12.25 x 16 x 26.5 x 9 |
| Dimensions (DWH xbackW, cm) | 31.12 x 40.6 x 67.3 x 22.9 |
| Weight (lbs/kg) | 39 / 17.6 |
Specifications subject to change without notice
