exm400
EXM Powered PA System

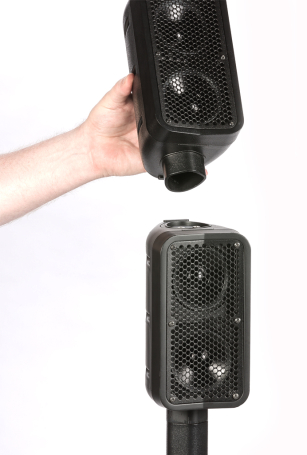

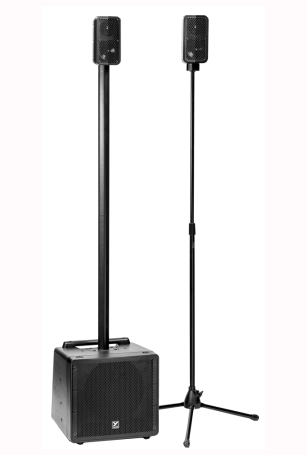

The EXM400 is designed for maximum mobility. The system includes a powered subwoofer with an integrated mixer, and two high-efficiency satellite speakers. Innovative pole-through conductors connect the satellites to the base, so no extra cables are required.

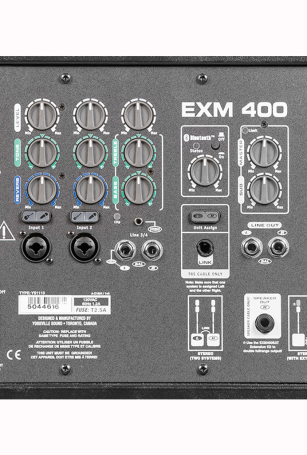

The mixer can accommodate mic, line, and instrument signals. The onboard hall reverb on channels 1 and 2 adds lush, spacious ambience without requiring an external effect processor, and a dedicated Bluetooth® channel lets you wirelessly stream backing tracks or background music.
The system is highly flexible and expandable. The satellite speakers can be configured in mono or stereo, and two systems can be connected with a single cable to double the available mixer inputs and power.
The EXM400 comes with two speaker poles for multiple height options, an adapter for placing a satellite speaker on a standard mic stand, and a deluxe padded gig bag.
Features
- 10” Subwoofer, 2x 3.5” HF Drivers per Satellite
- Onboard Mixer with 3 Discrete Input Channels
- Onboard Reverb
- Bluetooth® Streaming Enabled
- Rugged ABS Cabinet Design
- Optional EXM400SATKIT for Additional HF Coverage
- Made in Canada
Specifications
| System Type | Powered PA System |
| Power Rating | 800 W Peak (400 W Program) |
| Nominal Impedance (Ohms) | 4Ω |
| Max SPL | 121 dB |
| Frequency Response (Hz +/- 3dB) | 50 Hz - 20 kHz |
| Crossover Frequency | 240 Hz |
| Driver Configuration | 2x 3.5" (Satellite) / 1x 10" Subwoofer |
| HF Driver(s) | 2x 3.5" |
| HF Program Power (Watts) | 75 W per Channel |
| HF Impedance (Ohms) | 8Ω |
| HF Protection | Peak and RMS Limiting |
| LF Driver(s) | 1x 10" |
| LF Program Power(Watts) | 250 W |
| LF Impedance (Ohms) | 4Ω |
| LF Protection | Peak and RMS Limiting |
| HF Amplifier Type | Class AB Half Bridge |
| LF Amplifier Type | Class D Full Bridge |
| Cooling Scheme | Passive Convection |
| Channel 1 Input | 1 Combi-Jack (XLR / 1/4") |
| Channel 1 Controls | Level, Tone, Reverb |
| Channel 2 Input | 1 Combi-Jack (XLR / 1/4") |
| Channel 2 Controls | Level, Tone, Reverb |
| Channel 3 Input | 2x 1/4", 1/8" TRS Stereo Jack |
| Channel 3 Controls | Level, Treble, Bass |
| Level Controls | Ch1, Ch2, Ch3, Bluetooth, Sub, Master |
| EQ Controls | Tone (Ch1, Ch2), Treble / Bass (Ch3) |
| Other Controls / Features | Digital Effects (Room Reverb, Hall Reverb, Delay) |
| Dimensions (DWH) | 14.5" x 15.5" x 14.5" (36.8 cm x 39.3 cm x 36.8 cm) Subwoofer Only |
| Dimensions (DWH) | 78" (198 cm) Max Assembled Height |
| Weight | 43 lbs / 19.5 kg |
Specifications subject to change without notice
