ef10p
Elite 10” Powered Loudspeaker

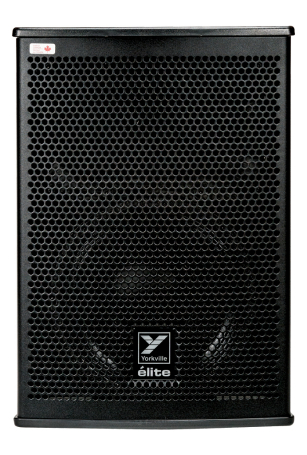

The EF10P is a compact 2-way active loudspeaker with innovative processing. Use it as a front-of-house speaker, personal monitor wedge, or self-contained compact PA for paging and playback with no mixer required.

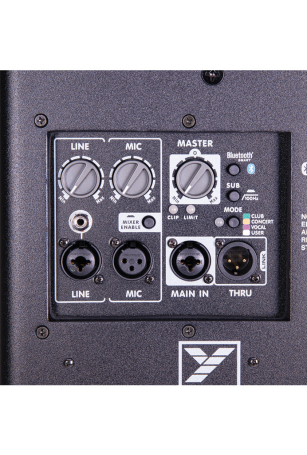

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4” TRS line level connections. An internal mixer can be engaged to add 1/8” TRS and 1/4” TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

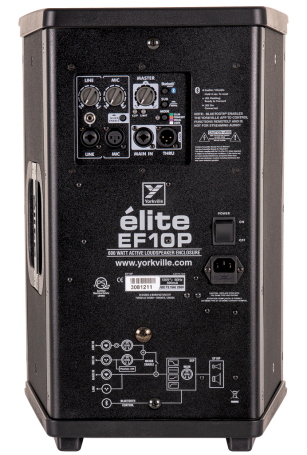

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn’t required when using a subwoofer, and pair a Bluetooth® device to control speaker parameters using the free companion app. A 500-watt amplifier powers the 10-inch woofer, and a 2-tier 100-watt amplifier drives the 1.5-inch horn.
An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs. The Class D amplifier, neodymium speaker magnets, and Baltic birch construction keep the total weight below 45 pounds while maintaining classic Elite ruggedness and durability.
Features
- 1200 W Peak Power (600 W Program)
- 10” Neodymium Woofer with 2.5” Voice Coil
- 1.5” Titanium-Diaphragm Compression Driver
- Multiband DSP Limiting with 4 Playback Performance Modes
- iOS and Android App for Added Cabinet Control
- ABS-Coated Birch Plywood Cabinet Construction
- Made in Canada
Specifications
| System Type | 2-Way |
| Power Rating | 1200 W Peak (600 W Program) |
| Max SPL | 129 dB Peak (122 dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 48 Hz - 20 kHz |
| Crossover Frequency | 1400 Hz |
| HF Driver(s) | 1.5 Voice Coil (Titanium Diaphragm) |
| HF Dispersion (°H x °V) | 100° x 40° |
| LF Driver(s) | 10" Neodymium Magnet with 2.5" Voice Coil |
| HF Power Amplifier (Watts) | 100 W |
| HF Amplifier Type | 2-Tier High Headroom |
| LF Power Amplifier (Watts) | 500 W |
| LF Amplifier Type | Class D |
| In / Out Connections | 1 Combi-Jack (XLR / 1/4") Main Input, 1 XLR-M Thru |
| Inputs | 1 XLR Microphone Input, 1 Combi-Jack (XLR / 1/4"), 1/8" Line Input |
| Input Impedance (Bal/UnBal) | 95KΩ / 90KΩ |
| Input Sensitivity (Vrms Sine) | +4 dBv / 1.23 V |
| Mixer Controls | Mixer Enable / DSP Mode (Club, Concert, Vocal, Custom) / Sub (100 Hz HP Filter) / Bluetooth Enable |
| Level Controls | Mic Input Level / Line Input Level |
| Master Volume Control | Yes |

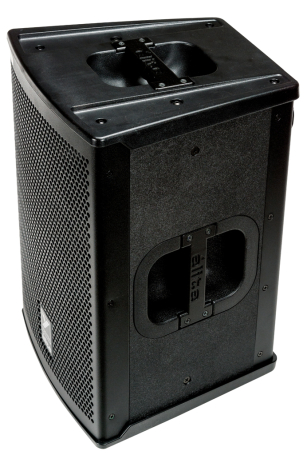

| Bar Handles | 2 (1 Side, 1 Top) |
| Flypoints | 4 (2 Top, 2 Bottom), 1 Pullback |
| Flying Hardware | 1/4 - 20 |
| Pole Mount Adapter (1 3/8 | 1 (Bottom) |
| Enclosure Materials | ABS-Coated Baltic Birch Plywood |
| Grille | Perforated Metal |
| Dimensions (DWH) | 13" x 13.7" x 20" (33 cm x 34.8 cm x 50.8 cm) |
| Weight | 43 lbs / 19.5 kg |
Specifications subject to change without notice
