c12w

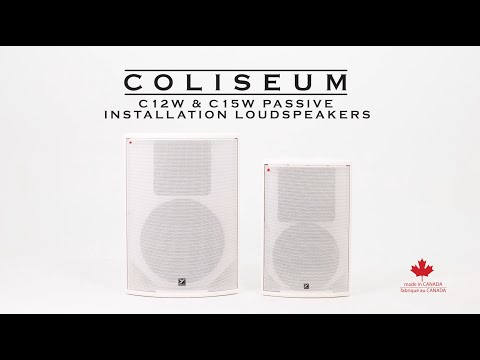

Coliseum 12" Installation Loudspeaker
Coliseum loudspeakers are designed for installation in home, retail, restaurant, office, school, and house of worship spaces. Whether you need discrete in-ceiling speakers, a horn for outdoor paging, or a flown array of powered cabinets, Coliseum combines high-fidelity audio with clean, minimalist aesthetics that blend naturally into any environment.
With 400 watts of power handling, a 12” woofer, rotatable horn, and OmniMount-compatible rigging points, the C12W is ideal for larger commercial or worship applications.
The optional FH2W hardware kit offers even more mounting flexibility for the C12W and C15W. It allows single-point hangs for solo cabinets or two-box arrays, with a staggered hole pattern for multiple tilt angles. If additional tilt-down is required, simply attach an eyebolt in the pullback position of the cabinet in addition to the hang point. When mounting two loudspeakers, the FH2W splays them at optimum angles to minimize interference.
Features
- 2-Way Installation Loudspeaker
- 400 Watt Program Power
- 124 dB Max SPL
- 12" LF Driver and 1" Horn Driver
- 80° x 50° Rotatable Horn
- Solid Birch Cabinet Construction
- Optional FH2W Flying Hardware Sold Separately
- Compatible with OmniMount Bracket
- Made in Canada
Specifications
| System Type | 2-Way |
| Active or Passive | Passive |
| Power Rating | 400 W |
| Nominal Impedance (Ohms) | 8Ω |
| Sensitivity (dB AT 1Watt/1m) | 98 dB |
| Max SPL | 124 dB |
| Frequency Response (Hz +/- 3dB) | 55 Hz - 20 kHz |
| Dispersion (H x V) | 80° x 50° Rotatable |
| Crossover Frequency | 1.1 kHz |
| Driver Configuration | 1x 12" LF Driver, 1x 1" HF Driver with Rotatable ABS Waveguide |
| HF Protection | CTL |
| Inputs | 2x speakON® 4-Pin, Screw Terminals |
| Flying Hardware | 1/4" |
| Optional Flying Hardware | FH2W Flyware Bracket |
| Pole Mount Adapter (1 3/8 | No |
| Enclosure Materials | 15 mm (5/8") 11-ply Baltic Birch |
| Grille | Perforated Metal |
| Covering / Finish | Two-Part White Epoxy |
| Other Details | Rear-Mount Rigging Points for Omnimount Bracket |
| Dimensions (DWH) | 14.3" x 16.2" x 24.1" (36.3 cm x 41.1 cm x 61.2 cm) |
| Weight | 54 lbs / 24.6 cm |
Specifications subject to change without notice
