Solid 15mm birch plywood cabinet construction and an efficient Class-D power amplifier design provide unmatched long-term reliability in the field.
| Active or Passive | Active |
| Power Rating (Watts) | 1000 Watts Program (2000 Watts Peak) |
| Max SPL (dB) | 132dB Peak (126dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 45Hz-100Hz |
| Crossover Frequency (Hz) | fixed @ 100Hz |
| Driver Configuration | 1x15-inch (Bass Reflex Cabinet) |
| LF Driver(s) | 1x15-inch Long Throw Ceramic w/ 3-inch VoiceCoil |
| Power Consumption | 3.4 Amps |
| Inputs | XLR Balanced Line Level Input ¼-inch Line or Speaker Level Input |
| Outputs | XLR Balanced Link Output ¼-inch Link Output |

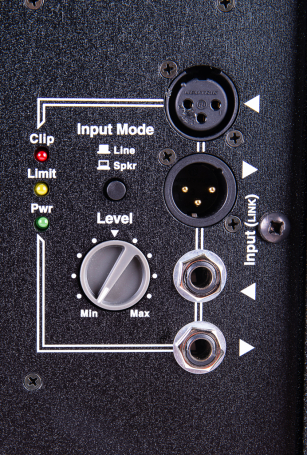

| Controls | Output Level, Line/Speaker Level Switch Power/Limit/Clip LED's |
| Enclosure Materials | 15mm Birch |
| Baffle Material | 15mm Birch |
| Covering / Finish | Paint |
| Dimensions (DWH xbackW, inches) | 24 x 17.4 x 20 |
| Dimensions (DWH xbackW, cm) | 61 x 44.2 x 50.8 |
| Weight (lbs/kg) | 82 / 37.3 |
Specifications subject to change without notice
