nx18sp NEW
NX 18” Powered Subwoofer
NX loudspeakers have a history of traditional analog design and a reputation for road-tested reliability. The new NX18SP is the first 18 subwoofer in the series two-decade tenure.
It was designed to be the perfect match for the latest generation of NX speakers. We suggest using one with a pair of NX8Ps, or two with a pair of NX12Ps for maximum sound reinforcement. As with all Yorkville Sound subwoofers, the NX18SP can be used to enhance any full-range system.
It features 2400 watts of peak output and three selectable voicing modes for rich, powerful bass in a compact, affordable enclosure.
NX speakers have been trusted on stages around the world for over 20 years, and the new NX18SP is ready to inspire a new generation of performers.
Features
- 2400 W Peak (1200 W Program)
- 18” Woofer with 3” Voice Coil
- 2x Combi-Jack (XLR / 1/4”) Inputs
- 2x XLR Link Outputs
- Punch, Smooth, and Deep Voicing Modes
Specifications
| System Type | Powered |
| Power Rating | 2400 watts peak (1200 watts program) |
| Max SPL | 134 dB Peak (127 dB continuous) |
| Frequency Response (Hz +/- 3dB) | 35 Hz - 100 Hz |
| Crossover Frequency | 100 Hz |
| LF Driver(s) | 18” with 4” Voice Coil |
| LF Amplifier Type | Class D |
| Cooling Scheme | Variable Speed Controlled Fan |

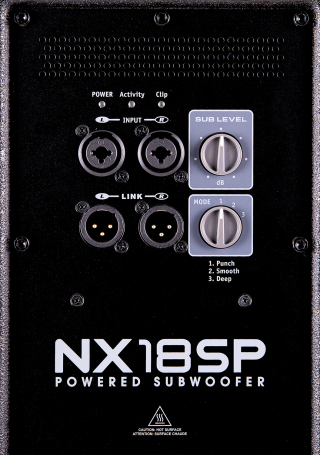

| In / Out Connections | 2x XLR Link Outputs |
| Inputs | 2x Combo-jack (XLR/1/4”) |
| Level Controls | Master - Sub Level |
| EQ Controls | Punch, Smooth, and Deep Voicing Modes |

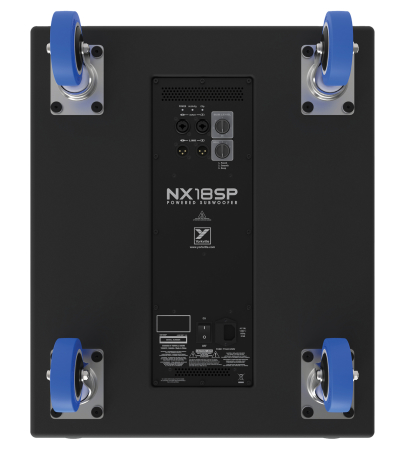

| Wheels | Removeable |
| Bar Handles | 2 (1x Each Side) |

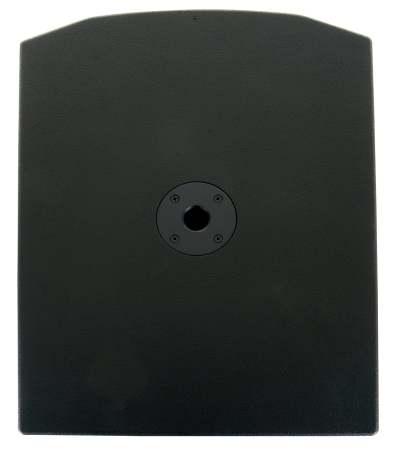

| Pole Mount Adapter (1 3/8 | 1 (Top) |
| Enclosure Materials | 15mm Birch |
| Covering / Finish | Textured Paint |
| Dimensions (DWH) | 26.6" x 20.5" x 24.8" (67.6 cm x 52.1 cm x 63.0 cm) 31.6" x 20.5" x 24.8" (80.3 cm,x 52.1 cm x 63 cm) with Optional Wheels |
| Weight | 104 lbs / 47.25 kg 110 lbs / 50 kg with Optional Wheels |
Specifications subject to change without notice
