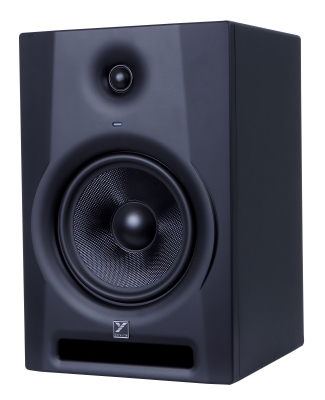

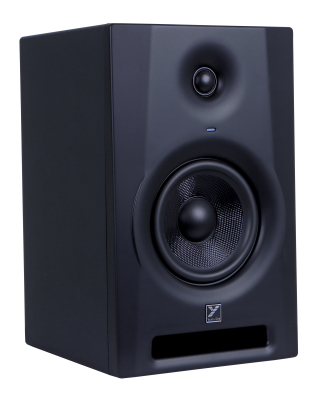

The YSM8-2 features 1-inch black-silk diaphragm neodymium dome tweeters. These tweeters blend seamlessly into the specially designed low-diffraction waveguide which is integrated into the front baffle. The edges of the wave-guide perfectly couple the tweeter with the woofer, reducing sonic anomalies normally associated with driver/tweeter proximity. The fibre-reinforced composite cone woofers have also been designed to perform with sonic excellence, providing a wide dynamic range at all levels. Integrated DSP is utilized to deliver transparent signal processing and bi-amplification has been optimized for each driver. The woofer and tweeter have been perfectly time aligned to eliminate any phase irregularities usually associated with 2-way designs.
| System Type | 2-Way |
| Active or Passive | Active |
| Power Rating (Watts) | 100 |
| Biampable | Self Powered |
| Biamp Operation Only | Yes |
| Max SPL (dB) | 105 |
| Frequency Response (Hz +/- 3db) | 40Hz-22kHz |
| Crossover Frequency (Hz) | 2.1 kHz |
| HF Driver(s) | Neo Soft dome Ferro Fluid |
| HF Power Rating (Watts) | 25 |
| HF Protection | Therm, Over voltage, Clip |
| LF Driver(s) | 8-inch composite |
| LF Power Rating (Watts) | 75 |
| LF Protection | Therm, Over voltage, Clip |
| HF Distortion | 0.015 |
| LF Amplifier Type | Class D |
| LF Distortion | 0.01 % |
| Cooling Scheme | convection |
| Power Cable | Included |

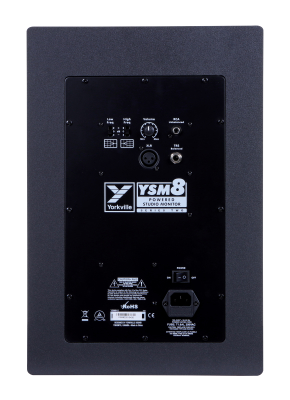

| Power Switch | Back, with LED on Baffle |
| Inputs - 1/4" Jacks | 1 |
| Inputs - XLR | 1 |
| Level Controls | 1 |
| LED Indicators | power on front |
| Enclosure Materials | MDF |
| Baffle Material | MDF/ABS |
| Covering / Finish | Textured Vinyl |
| Dimensions (DWH xbackW, inches) | 10.8 x 10.25 x 16.5 |
| Dimensions (DWH xbackW, cm) | 27.43 x 26.04 x 41.91 |
| Weight (lbs/kg) | 21 / 9.5 |
Specifications subject to change without notice
