ysm3bt
3.5" Multimedia Reference Monitors
YSM3BT are Yorkville Sound’s most compact reference monitors. Unique among the YSM series, they feature Bluetooth® connectivity for streaming audio and come as a convenient stereo pair.

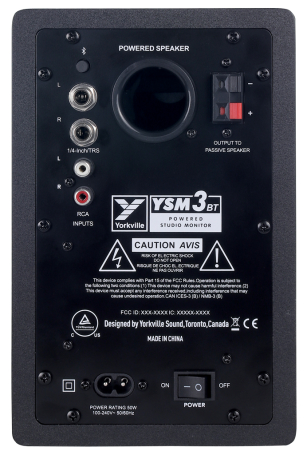

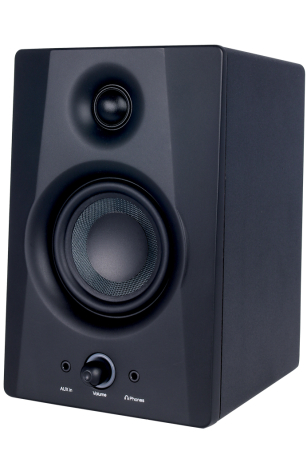

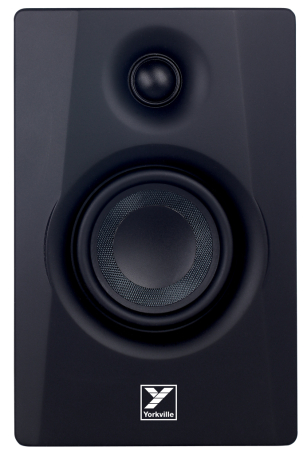

The speakers feature a 3.5” woofer and 3/4” silk dome tweeter. They can accept 1/4" TRS and RCA inputs, and there are front-mounted 1/8" jacks for auxiliary input and headphone output.
An affordable audio upgrade for computers and mobile devices, YSM3BT are ideal for desktop production, multimedia, and recreational listening. Like all YSM monitors, they have been designed with stylish, understated aesthetics and an obsession with clear, accurate sound.
Features

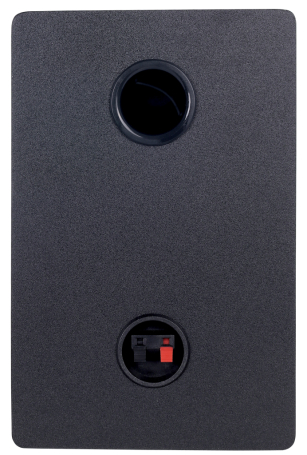

- Stereo Pair with 1x Active and 1x Passive Speaker
- 50 Watt Integrated Amplifier (2x 25 W)
- 3.5" Woofer and 3/4" Silk Dome Tweeter
- 82 Hz - 20 kHz Frequency Response (+/- 3 dB)
- 1/4" TRS, RCA, and 1/8" TRS Inputs
- Bluetooth® Wireless Streaming
- Headphone Output with Speaker Mute
- Includes 1/8" - 1/8" and 1/8" - RCA Cables
Specifications
| System Type | 2-Way |
| Active or Passive | 1x Active, 1x Passive |
| Program Power (Watts) | 50 W (25 W + 25 W) |
| Max SPL (dB) | 98 dB Continuous |
| Frequency Response (Hz +/- 3db) | 82 Hz - 20 kHz |
| Crossover Frequency (Hz) | 3 kHz |
| HF Driver(s) | 3/4" Silk Dome Tweeter |
| LF Driver(s) | 3.5" |
| LF Amplifier Type | Class AB |
| Inputs | 2x 1/4" TRS Stereo RCA Stereo 1/8" Aux Bluetooth® 5.0 Connectivity |
| Enclosure Materials | MDF |
| Baffle Material | ABS |
| Covering / Finish | Textured Vinyl |
| Dimensions (DWH xbackW inches) | 6.3" x 5.6" x 8.6 " (16 cm x 14.2 x 21.8 cm) |
| Weight (lbs/kg) | 7 lbs / 3.2 kg |
Specifications subject to change without notice
