pgm8

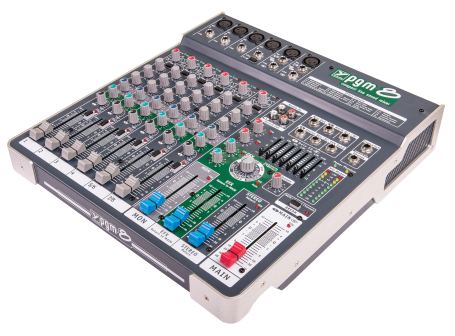

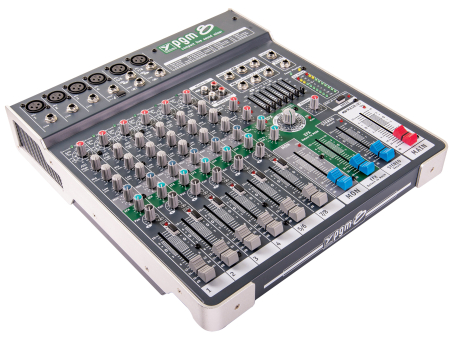

8-Channel Mixer with Effects

A compact analog mixer with onboard effects, the PGM8 is an all-in-one solution for live sound, installations, and presentations that require up to eight input channels (four mono, two stereo).

It offers robust connectivity with six XLR mic inputs, four mono 1/4" line inputs, and two stereo 1/4" line inputs. A Hi-Z switch on channel 4 enables the direct connection of instrument-level signals such as a guitar or bass without requiring an external DI. Each channel has a switchable high-pass filter, 3-band EQ, mute button, clip indicator, and 60 mm fader.

The 24-bit DSP engine has sixteen stereo effects including reverb, delay, modulation, and more. Channels 1 through 4 offer built-in compression, and a 7-band graphic EQ on the main output lets you fine-tune the total mix.

The PGM8 also includes multi-segment VU metering, phantom power, RCA connections to easily integrate consumer AV equipment, footswitch support to mute the onboard effects, a convenient global mute for input channels, and independent control of main, monitor, and headphone levels.

Packed with features and intuitive to operate, we like to think the PGM8 is a pretty good mixer.

Features

  •  4x Mono Channels (XLR / 1/4")
  • 2x Stereo Channels (1x XLR, 2x 1/4")
  • Global Phantom Power
  • Selectable Hi-Z Instrument Input on Channel 4
  • Onboard Compression on Channels 1 - 4
  • Onboard Digital Effects with 16 Algorithms
  • 3-Band EQ per Channel with 7-Band Master Graphic EQ
  • 60 mm Faders

Specifications

Number of Channels 8
Channel EQ 3-Band
Channel Overload Protection Yes
Inputs 6x XLR
8x 1/4" TRS
1x Stereo RCA
Channel Features Gain, High-Pass Filter (80 Hz)
Monitor Send
EFX Send
Pan / Balance
Mute
Clip / Mute LED
Phantom Power Global 48 V with LED Indicator
VU Meter 2x 10-Segment LED
Headphone Monitor Features 1x 1/4"
Internal Effects 16 Algorithms, 24-Bit Stereo
Auxiliary Sends EFX (to Internal Effects and 1/4" EFX Send)
Outputs 1x RCA
2x XLR (Main)
Master EQ -1 (type/Channels/Range -dB) 7-Band Graphic
Mixer - Frequency Response 20 Hz - 20 kHz
Mixer THD (Main out w/ -10dB input) <0.05%
CMRR AT 60Hz (min/typ) 55 dB / 65 dB
Power Consumption (typ/max) 26 VA
Cooling Fan
Transformer Type SMPS
Chassis Construction Steel
Console Lamp Connector 12V DC (BNC) NA
Other Features Input Compressors (Channels 1 - 4)
Hi-Z Input Switch (Channel 4
EFX Footswitch Jack
Dimensions (DWH inches) 14.2" x 12.8" x 2.8" (36 cm x 32.5 cm x 7 cm)
Dimensions (DWH cm) 14.2" x 12.8" x 2.8" (36 cm x 32.5 cm x 7 cm)
Weight (lbs/kg) 8.5 lbs / 3.8 kg

Specifications subject to change without notice
