BPM12 NEW
12-Channel Battery-Powered Mixer with USB
The BPM12 is a battery-powered compact mixer that's designed to be the perfect companion for our range of battery-powered speakers.
It offers up to 18 hours of battery life on a full charge, and features a USB-A port to charge your phone or tablet to keep the music going.
Beyond the battery, the BPM12 is a flexible modern mixer with a rich feature set and extended connectivity. It offers 12 channels and 10 mic preamps, plus Bluetooth®, USB-C, and 1/8" media inputs.The USB-C port also enables the mixer to function as a class-compliant stereo audio interface.
Equally ready for live sound or studio recording, it also features two monitor outputs, a zone/subwoofer output, 16 adjustable effects, an assignable 9-band graphic EQ, and much more.
Yorkville is the leader in battery-powered PA, and the BPM12 is the next step in our mission to power extraordinary performances in extraordinary places.
Features
- 12-Channel Compact Mixer
- 10 Mic Preamps with Global 24V Phantom Power
- Up to 18 Hours of Battery Life
- 16 Adjustable Effects
- Built-in Compression on Mono Input Channels and Effects
- Assignable 9-Band Graphic EQ
- 2 Monitor Out Busses and Zone/Sub Output
- Bluetooth, 1/8" Media In, and USB-C Media In/Out Connections
- 5V USB-A Port to Power External Devices

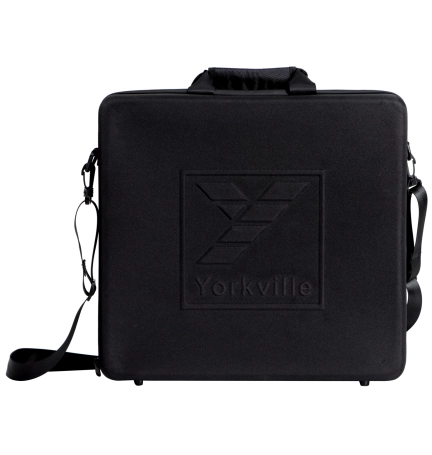

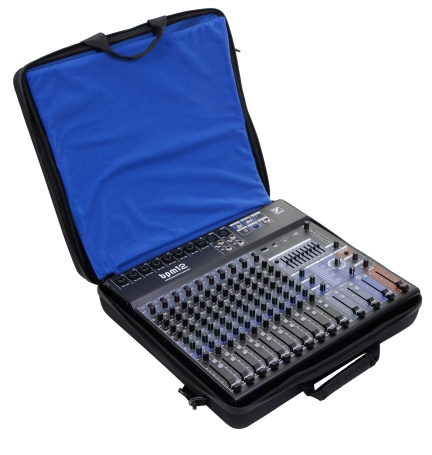

- Padded Carrying Bag Included
Specifications
| Number of Channels | 12 |
| Channel Inserts | 10 |
| Channel EQ | 3-Band with Sweepable Midrange |
| Stereo Channel EQ | 4-Band with Fixed Midrange |
| Inputs | 8 Mono Mic / Line Combo Inputs 2 Mono Mic / Stereo 1/4" Line Inputs Bluetooth, 1/8” Aux, and USB-C Media Inputs |
| Phantom Power | 24V Global |
| Internal Effects | 16 Adjustable Algorithms |
| Outputs | Main Outputs, Mon 1, Mon 2, Zone/Sub (XLR / 1/4") Headphones, Balanced EFX Send (1/4”) Media Out (USB-C) |
| Master EQ | 9-Band Graphic (Assignable) |
| Frequency Response | 20 Hz - 20 kHz |
| Total Harmonic Distortion | <0.05% |
| Power Consumption (typ/max) | 15 W / 30 W |
| Dimensions | 17" x 16.3" x 12.2" 43.2 cm x 41.4 cm x 31 cm |
| Weight | 12 lbs / 5.45 kg |
Specifications subject to change without notice
