yxl10
YXL 10” Unpowered Loudspeaker
The YXL series is Yorkville Sound’s most affordable and versatile speaker lineup, and the YXL10 is the lightest, most compact YXL unpowered loudspeaker. Designed for rehearsal spaces and small venues with external power amplifiers, YXL unpowered loudspeakers can be used vertically on the floor or a speaker stand, wedged as a stage monitor, or flown.
The YXL10 uses a single 10-inch woofer and a 90° x 40° horn with a 1-inch throat and 1-inch compression driver. The cabinet is constructed with strong polypropylene for reliability and durability.
YXL delivers clear sound, exceptional value, and the best price-to-performance ratio of any Yorkville Sound PA series.
Features
- 600 W Peak Power (300 W Program)
- 10” Woofer with 2” Voice Coil
- 1” Compression Driver
- Polypropylene Cabinet Construction
Specifications
| System Type | Unpowered Loudspeaker |
| Power Rating | 1200 W Peak (600 W Program) |
| Nominal Impedance (Ohms) | 8Ω |
| Sensitivity (dB AT 1Watt/1m) | 97 dB |
| Max SPL | 122 dB Continuous |
| Frequency Response (Hz +/- 3dB) | 55 Hz - 16 kHz |
| Dispersion (H x V) | 90° x 40° |
| Crossover Frequency | 1.6 kHz |
| HF Driver(s) | 1” compression driver |
| HF Horn | Integrated into Baffle |
| LF Driver(s) | 10” with 2” Voice Coil |

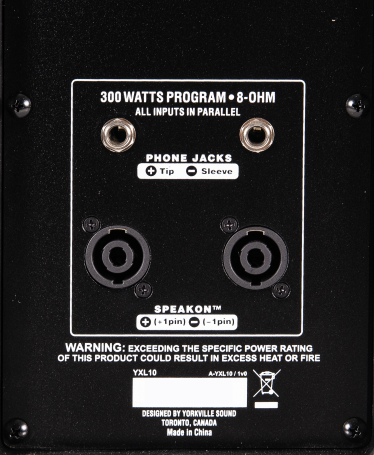

| Inputs | 2x Speakon 2x 1/4" |
| Bar Handles | 2 (1x Side, 1x Back) |
| Flypoints | 2 (2x Top, 1x Pullback) |
| Flying Hardware | M8 Metric Threading |
| Pole Mount Adapter (1 3/8 | Dual Angle (1x Bottom) |
| Enclosure Materials | Polypropylene |
| Dimensions (DWH) | 11” x 13.3” x 20.5” (28 cm x 33.5 cm x 52 cm) |
| Weight | 29.9 lbs / 13.6 kg |
Specifications subject to change without notice
