YXL Tower12 NEW
Column PA with 12" Subwoofer
The new YXL Tower12 is Yorkville Sound’s most affordable column PA system with a 12” subwoofer . They’re ideal for musicians and presenters who need portable sound reinforcement for smaller venues, and multiple units can be linked for larger applications.
The YXL Tower12 delivers 1550 watts of peak power between the high-frequency compression driver, four 3" midrange drivers and subwoofer. It also features an integrated mixer, three voicing modes, and Bluetooth connectivity including wireless stereo playback between two systems.
Up to sixteen YXL towers can be linked together, and up to three onboard mixers can be active within a linked system.

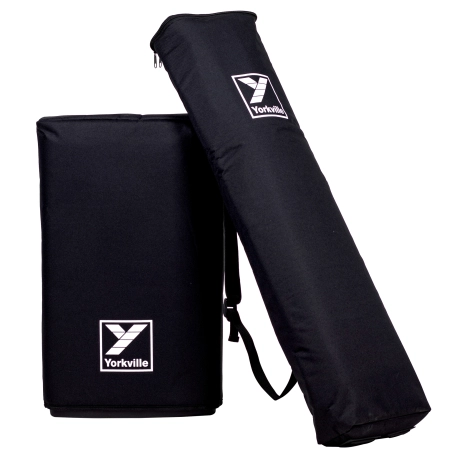

The speaker bar can be mounted directly into the subwoofer or placed on top of the included extension column. A gig bag and subwoofer cover are included for easy transport.
Looking for a smaller (or lighter) subwoofer footprint? Click here for the YXL Tower10.
Features
- 1550 Watts Peak Power (1250 Subwoofer, 300 Mid / High)
- 126 dB Peak SPL (119 Continuous)
- Neodymium Drivers: 12" Subwoofer, 4x 3" Midrange, 3/4" HF
- Bluetooth Receiver with Wireless Stereo Playback Support
- Onboard 3-Channel Mixer
- Concert, Club, and Speech Modes
- Gig Bag Included
Specifications
| System Type | Powered PA System |
| Power Rating | 1550 W Peak (1250 Subwoofer, 300 Mid / High) 775 W Program (625 Subwoofer, 150 Mid / High) |
| Max SPL | 126 dB Peak (119 Continous) |
| Frequency Response | 45 Hz - 20 kHz |
| Dispersion (H x V) | 100° x 35° |
| HF Driver(s) | 3/4" Exit Neodymium Compression Driver |
| MF Driver(s) | 4x 3" Neodymium |
| LF Driver(s) | 12" Neodymium |

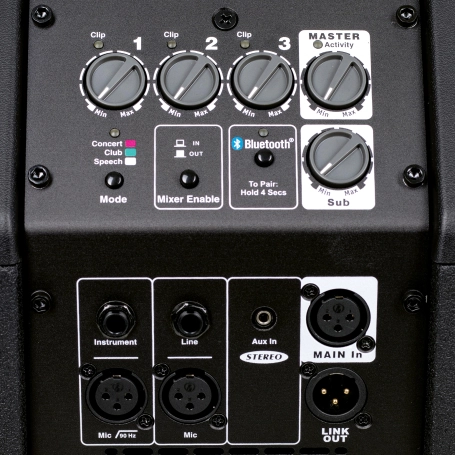

| Channel 1 Input | Mic (XLR) / Instrument (1/4") |
| Channel 2 Controls | Mic (XLR) / Line (1/4") |
| Channel 3 Input | Aux (1/8" Stereo) / Bluetooth® |
| Master Volume Control | Master Level, Sub Level |
| Link In/Out (type / configuration) | XLR |
| LED Indicators | Ch. 1 Clip, Ch 2. Clip, Ch. 3 Clip, Master Activity, Mode (Concert, Club, Speech), Bluetooth Status |
| Dimensions (DWH) | Subwoofer: 16" x 12.6" x 23.9" (40.6 cm x 32 cm x 60.7 cm) Speaker Column: 3.6" x 3.6" x 32.8" (9.1 cm x 9.1 cm x 83.3 cm) Extension Column: 3.6" x 3.6" x 32.5" (9.1 cm x 9.1 cm x 82.6 cm) Assembled Height: 81.9" / 208 cm |
| Weight | 41.1 lbs / 18.6 kg |
Specifications subject to change without notice
