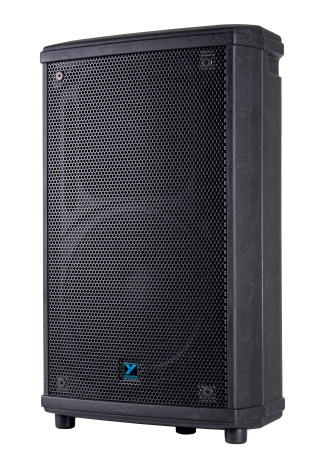

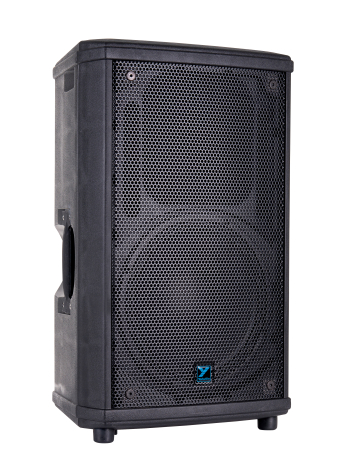

The new NX35-2 is slightly larger that the original NX20. The increased cabinet volume greatly increases low frequency response and makes for a better, more balanced overall cabinet tone. It features a new 80° x 50° horn, patterned after the custom ABS waveguide horn used in the popular élite loudspeaker line.
As with all NX series enclosures, the NX35-2 is manufactured with rigid internal bracing and using tough, light weight low resonance variable density composite materials that are UV and moisture resistant. The new shape employed on the NX35-2 makes for an improved monitor angle when it is employed in that role and upright, it is ideal for mounting in tight arrays, or in multiple cabinet clusters. The NX35-2 is the ideal cabinet to become the flagship of the NX Series' compact models. All in all, the NX35-2 is an ideal solution to professional sound requirements where high performance is needed from a compact, lightweight speaker.
The NX35-2 enclosure itself has been molded for maximum versatility. The trapezoid box is ideal for mounting in arrays, or for use as a monitor. An improved wedge monitor angle has been incorporated into the new design.
| System Type | 2-Way |
| Active or Passive | Passive |
| Power Rating (Watts) | 500 Watts (1000 Watts Peak) |
| Biampable | No |
| Nominal Impedance (Ohms) | 8 |
| Sensitivity (dB @1Watt/1m) | 100 |
| Max SPL (dB) | 130dB Peak (127dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 60 - 18k |
| Crossover Frequency (Hz) | 2k |
| Driver Configuration | 12 inch / 1 inch |
| HF Driver(s) | 1.4-inch Aluminum Diaphragm / 1-inch exit |
| HF Impedance (Ohms) | 8 |
| HF Dispersion (°H x °V) | 80 x 50 |
| HF Protection | Dual bulb CTL™ |
| LF Driver(s) | 12-inch, 2.5-inch voicecoil |
| LF Impedance (Ohms) | 8 |

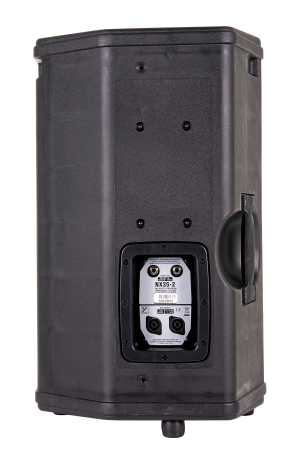

| Inputs - 1/4" Jacks | 2 |
| Inputs - Speakon 4-pin | 2 |
| Feet | Yes |
| Bar Handles | 1 (Side) |
| Flying Hardware | 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback) |
| Optional Flying Hardware | NXF Flyware |
| Pole Mount Adapter (1 3/8"-3.5cm) | Yes |
| Enclosure Materials | Molded Polypropylene |
| Grille | Black Perforated Metal |
| Covering / Finish | Black |
| Dimensions (DWH xbackW, inches) | 12.25 x 16 x 26.5 x 9 |
| Dimensions (DWH xbackW, cm) | 31.12 x 40.6 x 67.3 x 22.9 |
| Weight (lbs/kg) | 28 / 12.7 |
Specifications subject to change without notice
