nx12p NEW

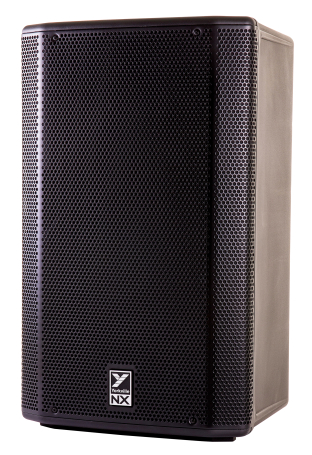

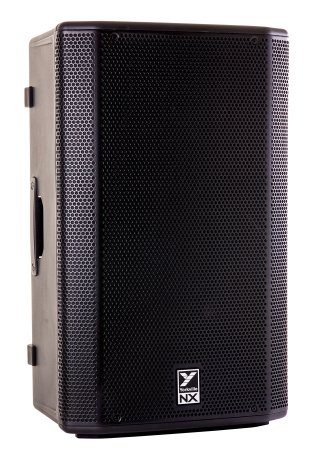

NX 12” Powered Loudspeaker
NX loudspeakers have a history of traditional analog design and a reputation for road-tested reliability. Now, Yorkville is proud to introduce the new NX12P, a thoroughly modern update to this classic series. This next-generation model offers advanced DSP, powerful limiting, extended connectivity, and exceptional sound.
The NX12P works equally well as a front of house speaker, stage monitor, or side-fill cabinet. Featuring a 12” woofer and 4850 watts of peak power (1450 watts program).

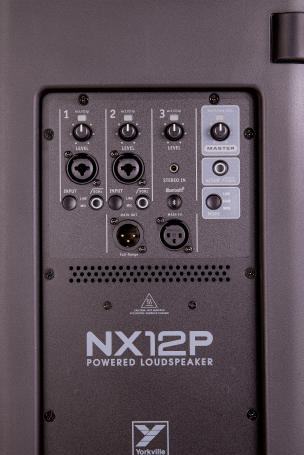

In addition to the main XLR input and output, the NX12P has an onboard three-channel mixer, so it doesn’t require an external console for small PA applications. Two mono channels each feature Combi-Jack inputs, phantom power, switchable mic or line input levels, and switchable high-pass filters. The third channel accepts stereo 1/8" line or Bluetooth® sources, including wireless stereo playback between two cabinets.

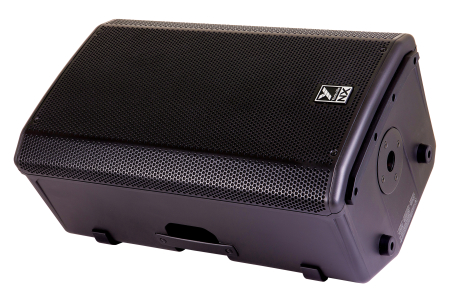

The master section features a high-pass filter for use with a subwoofer or as a vocal monitor, and three selectable modes optimize EQ and dynamics for music playback, live performance, or stage monitor use.
NX speakers have been trusted on stages around the world for over 20 years, and the new NX12P is ready to inspire a new generation of performers.
Features
- 4850 W Peak Power (1450 W Program)
- 12” LF Driver and 1” HF Driver
- Main Input & Output XLR Connections
- Onboard 3-Channel Mixer (2x Mono, 1x Stereo) with Phantom Power
- Bluetooth® Wireless Streaming
- Switchable LF Rolloff for Use with Subwoofers
- Onboard DSP with 3 Voicing Modes
- Integrated Flying Hardware
Specifications
| System Type | Powered Loudspeaker |
| Power Rating | 4850W Peak (1450 W Program) |
| Max SPL | 128 dB Peak |
| Frequency Response (Hz +/- 3dB) | 50 Hz – 20 kHz |
| HF Driver(s) | 1” Exit Compression Driver |
| LF Driver(s) | 12” |
| In / Out Connections | Main In (XLR-F), Main Out (XLR-M) |
| Channel 1 Input | 1 Combi-Jack (XLR / 1/4") |
| Channel 1 Controls | Level, Input Type, High-Pass Filter |
| Channel 2 Input | 1 Combi-Jack (XLR / 1/4") |
| Channel 2 Controls | Level, Input Type, High-Pass Filter |
| Channel 3 Input | 1/8" TRS, Bluetooth® Wireless |
| Channel 3 Controls | Level |
| Bar Handles | 2 (1 Side, 1 Top) |
| Flypoints | 3 (2 Top, 1 Pullback) |
| Flying Hardware | M8 Threading |
| Pole Mount Adapter (1 3/8 | 1 (Bottom) |
| Enclosure Materials | Polypropylene |
| Grille | Perforated Metal |
| Dimensions (DWH) | 12.68” x 15.20” x 25.29” (32.2 cm x 38.6w cm x 64.2 cm) |
| Weight | 45.3 lbs / 20.6 kg |
Specifications subject to change without notice
