NX10C-2

NX 10-inch / 1-inch Coaxial - 500 watts

No need to bring separate stands for stage lighting and speakers when NX10C-2's can be mounted under the light bars, saving valuable stage space.

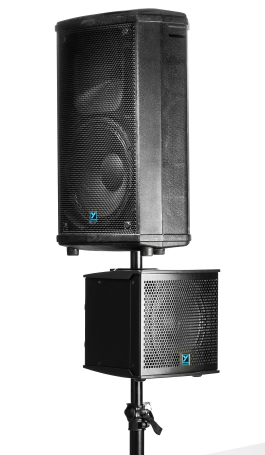

For side-wash monitor applications on tight stages, the NX10C-2 can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.

The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C-2 to be used as a compact wide coverage floor monitor or center fill cabinet.

Versatile inputs for mic or line level sources as well as an 1/8th-inch TRS jack allow the NX10C-2 to direct connect to any audio source.

Features

  • No need to bring separate stands for stage lighting and speakers when NX10C-2's can be mounted under the light bars, saving valuable stage space.
  • For side-wash monitor applications on tight stages, the NX10C-2 can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.
  • The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C-2 to be used as a compact wide coverage floor monitor or center fill cabinet.
  • Versatile inputs for mic or line level sources as well as an 1/8th-inch TRS jack allow the NX10C-2 to direct connect to any audio source.
  • Made in Canada

Specifications

Active or Passive Active
Power Rating (Watts) 500 Watts (1200 Watts Peak)
Biampable Self Powered
Max SPL (dB) 127dB Peak (124dB Continuous)
Frequency Response (Hz +/- 3dB) 80Hz - 20kHz
Crossover Frequency (Hz) 2500Hz
Driver Configuration Coaxial 10-inch/1-inch
HF Driver(s) 1-inch Throat, Ceramic Magnet, 1.4 inch PETP Film
HF Dispersion (°H x °V) 60 x 60
LF Driver(s) 10-inch Ceramic Magnet with a 2.5" voice coil
HF Amplifier Type Class A/B
LF Amplifier Type 3 Tier Class- H
Power Cable Yes
Power Switch Yes
Power Consumption (typ/max) 120 / 310 VA
Inputs 3 (Combi-jack Mic Input / Combi-jack Line Input / 1/8-inch TRS Line Input) 1/4" inputs are parallel
Input Sensitivity (Vrms Sine) 1.23 Vrms, +4dBu
Mixer Controls EQ (Playback/Bright)
Level Controls Line/Mic
Limiter Yes
LED Indicators Power, Clip
Feet Yes
Pole Mount Adapter (1 3/8"-3.5cm) Pole Through
Enclosure Materials Injection Molded Fiber Reinforced ABS / Aluminum/13ply birch
Grille Perforated Steel
Dimensions (DWH xbackW, inches) 13 X 13.5 X 12
Dimensions (DWH xbackW, cm) 33 x 34.3 x 30.5
Weight (lbs/kg) 25 / 11.3

Specifications subject to change without notice

nx10c-2
nx10c-2front

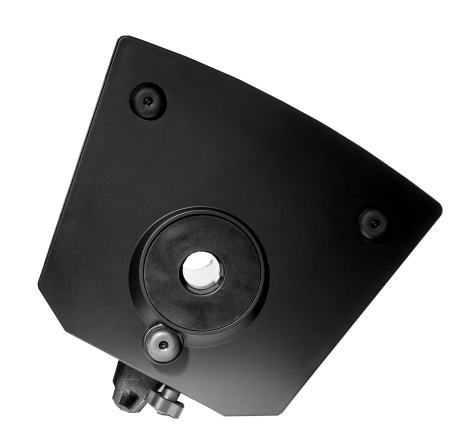

nx10c-2bottom

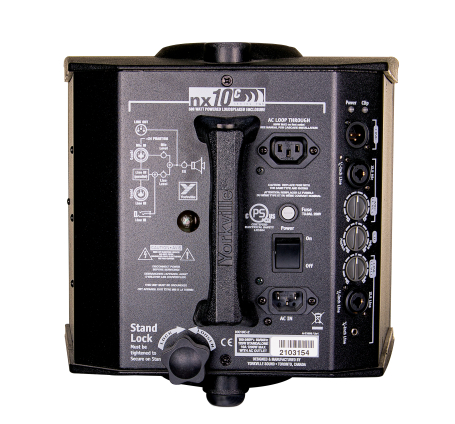

nx10c-2rear

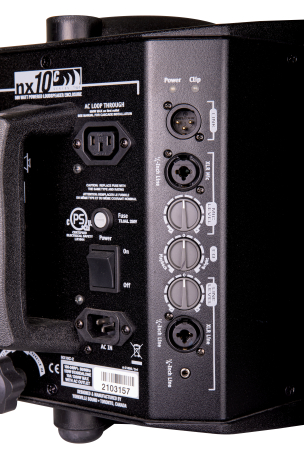

nx10c-2panel

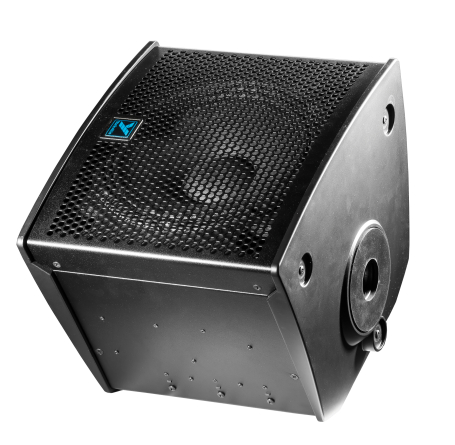

nx10c-2monitor
nx10c-2stack4
nx10c-2stack5

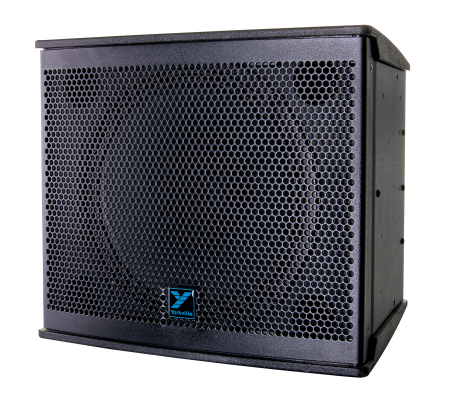

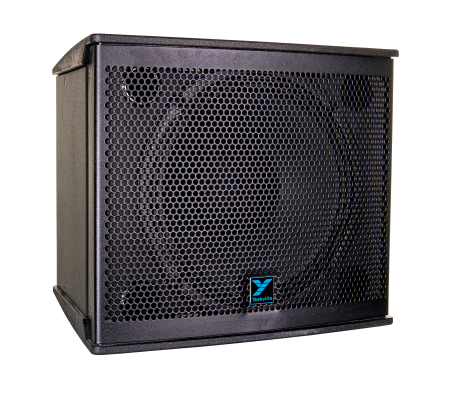

nx10c-2angle-b
