exm70
EXM Powered PA Speaker
The EXM70 uses two 6.5-inch woofers and a studio-quality soft-dome tweeter to deliver full-range tone from a compact, portable enclosure that weighs less than 17 pounds.

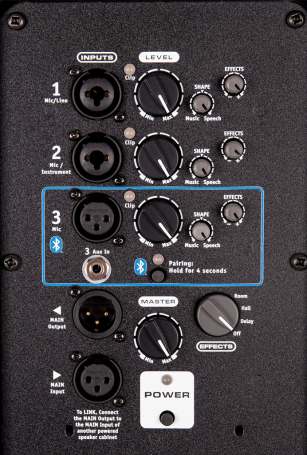

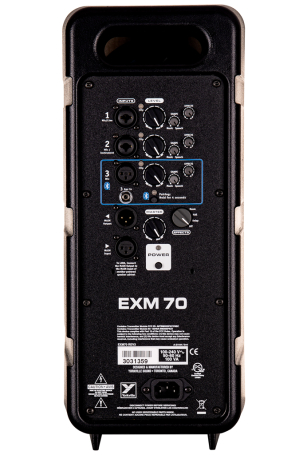

With versatile connectivity and onboard effects, the EXM70 can be used without an external mixer as a self-contained solution for soloists and duos. In addition to the main input and output, the rear panel has three channels: mic/line, mic/instrument, and mic/aux/Bluetooth®. Each channel has a Shape control to optimize the EQ for music or speech, and an Effects control to add reverb or delay.
Two units can be linked with a single XLR cable, doubling the inputs and the power for larger events and increased coverage.
Built for mobility and convenience, the EXM70 has an integrated handle and standmount adaptor for easy transport and placement.
Features
- 2x 6.5” Woofers, 1” Soft-Dome Tweeter
- Onboard Mixer with 3 Discrete Input Channels
- Onboard Room Reverb, Hall Reverb, and Delay
- Bluetooth® Streaming Enabled
- Rugged ABS Cabinet Design
- Integrated Speaker Stand Mount
- Made in Canada
Specifications
| System Type | Powered Loudspeaker |
| Active or Passive | Active |
| Power Rating | 140 W Peak (70 W Program) |
| Max SPL | 115 dB |
| Frequency Response (Hz +/- 3dB) | 90 Hz - 20 kHz |
| Driver Configuration | 2x 6.5" / 1" |
| HF Driver(s) | 1" Soft Dome |
| LF Driver(s) | 2x 6.5" |
| Power Cable | Removeable IEC |
| Power Switch | Yes |
| Channel 1 Input | 1 Combi-Jack (XLR / 1/4") |
| Channel 1 Controls | Level, Shape, Effects Send |
| Channel 2 Input | 1 Combi-Jack (XLR / 1/4") |
| Channel 2 Controls | Level, Shape, Effects Send |
| Channel 3 Input | XLR Mic, 1/8" TRS Stereo Jack, Bluetooth® |
| Channel 3 Controls | Level, Shape, Effects Send, Bluetooth |
| Master Volume Control | Yes |
| Link In/Out (type / configuration) | XLR Connector |
| LED Indicators | Power, CH1, CH2, CH3 |
| Other Controls / Features | Digital Effects (Room Reverb, Hall Reverb, Delay) |
| Bar Handles | Rear Integrated Handle |
| Pole Mount Adapter (1 3/8 | 1 (Bottom) |
| Enclosure Materials | ABS |
| Grille | Metal |
| Dimensions (DWH) | 17.5" x 7.75" x 8" (44.5 cm x 19.7 cm x 20.3 cm) |
| Weight | 16.3 lbs / 7.4 kg |
Specifications subject to change without notice
