ef215p
Elite 2x15” Powered Loudspeaker
The EF215P is a 2-way active loudspeaker with innovative processing. It is the only double 15-inch cabinet in the Elite series, and offers the best low-frequency projection of any full-range loudspeaker in the Yorkville catalog. It has been meticulously designed to sound absolutely massive.
The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4” TRS line level connections. An internal mixer can be engaged to add 1/8” TRS and 1/4” TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

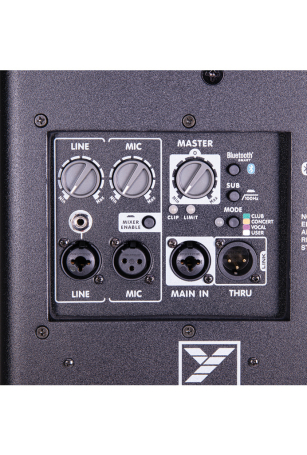

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn’t required when using a subwoofer, and pair a Bluetooth® device to control speaker parameters using the free companion app.
A 900-watt amplifier powers the 15-inch woofers, and a 3-tier 300-watt amplifier drives the 3-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs.
Class D amplifiers, neodymium speaker magnets, and Baltic birch construction keep the total weight below 95 pounds while maintaining classic Elite ruggedness and durability.
The multi-angle enclosure, pioneered for the Elite line, enables the EF215P to operate vertically on a stand or horizontally as a stage monitor.
Features
- 2400 W Peak Power (1200 W Program)
- 2x 15” Neodymium Woofers with 3” Voice Coils
- 3” Titanium-Diaphragm Compression Driver
- Multiband DSP Limiting with 4 Preset Playback Performance Modes
- iOS and Android App for Added Cabinet Control
- ABS-Coated Birch Plywood Cabinet Construction
- Made in Canada
Specifications
| System Type | Powered Loudspeaker |
| Active or Passive | Active |
| Power Rating | 2400 W Peak (1200 W Program) |
| Max SPL | 133 dB Peak (127 dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 43 Hz - 16 kHz |
| Crossover Frequency | 1100 Hz |
| Driver Configuration | 2x 15" / 3" |
| HF Driver(s) | 3" Voice Coils (Titanium Diaphragm) |
| HF Dispersion (°H x °V) | 60° x 40° |
| LF Driver(s) | 15" Neodymium Magnets with 3" Voice Coils |
| LF Power Amplifier (Watts) | 900 W |
| LF Amplifier Type | Class D |
| Power Cable | Removeable IEC |
| Power Switch | YES |
| In / Out Connections | 1 Combi-Jack (XLR / 1/4") Main Input, 1 XLR-M Thru |
| Inputs | 1 XLR Microphone Input, 1 Combi-Jack (XLR / 1/4"), 1/8" Line Input |
| Input Impedance (Bal/UnBal) | 95KΩ / 90KΩ |
| Input Sensitivity (Vrms Sine) | +4 dBv / 1.23 V |
| Controls | Mixer Enable, DSP Mode (Club, Concert, Vocal, Custom), Bluetooth Enable, Sub (100 Hz HP Filter) |
| Level Controls | Mic Input Level, Line Input Level |
| Master Volume Control | Yes |
| Bar Handles | 5 (2 Each Side, 1 Top) |
| Flypoints | 8 (2 Top, 2 Bottom, 2 Each Side), 2 Pullback |
| Flying Hardware | 1/4 - 20 |
| Pole Mount Adapter (1 3/8 | No |
| Enclosure Materials | ABS Coated Baltic Birch Plywood |
| Grille | Perforated Metal |
| Dimensions (DWH) | 14" x 18.5" x 44.5" (35.5 cm x 47 cm x 113 cm) |
| Weight | 93 lbs / 42 kg |
Specifications subject to change without notice
