c165w

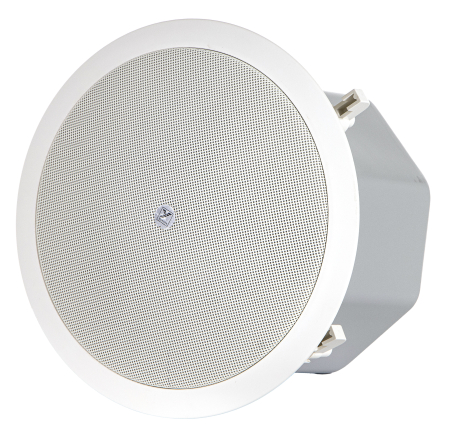

Coliseum 6.5" Ceiling Speaker
Coliseum loudspeakers are designed for installation in home, retail, restaurant, office, school, and house of worship spaces. Whether you need discrete in-ceiling speakers, a horn for outdoor paging, or a flown array of powered cabinets, Coliseum combines high-fidelity audio with clean, minimalist aesthetics that blend naturally into any environment.
Designed for lively club, restaurant, and retail environments, the 60-watt C165W is Yorkville Sound's most powerful ceiling-mounted loudspeaker. Featuring a coaxial 6.5" woofer and 3/4" titanium-coated tweeter, it delivers superior sound quality for background music and paging systems.
It supports 70-volt and 100-volt operation, with multiple taps for optimizing the coverage and balance of your speakers.
An optional adapter (C165CBRKT) is sold separately for mounting the C165W in drop ceilings
Features
- Ceiling Mount Loudspeaker
- 60 Watt Program Power
- 110 dB Max SPL
- Coaxial 6.5" LF Driver and 3/4" HF Driver
- 70 Volt Taps at 7.5, 15, 30 or 60 Watts
- 100 Volt Taps at 15, 30 or 60 Watts
- C165CBRKT Suspended Ceiling C-Bracket Sold Separately
Specifications
| System Type | Celing Speaker |
| Active or Passive | Passive |
| Power Rating | 60 W |
| Nominal Impedance (Ohms) | 8Ω or 70 / 100 V |
| Sensitivity (dB AT 1Watt/1m) | 92 dB |
| Max SPL | 110 dB |
| Frequency Response (Hz +/- 3dB) | 100 Hz - 20 kHz |
| Dispersion (H x V) | 120º x 120º |
| Driver Configuration | 1x 6.5" LF Driver, 1x 3/4" HF Driver |
| Inputs | Screw Terminals |
| No Tap | 7.5, 15, 30, 60 W @ 70V |
| Optional Flying Hardware | C165CBRKT |
| Enclosure Materials | Aluminum / ABS Plastic |
| Grille | Metal |
| Dimensions (DWH) | 10" x 10" x 7" (25 cm x 25 cm x 18 cm) |
| Weight | 7.3 lbs / 3.3 kg |
Specifications subject to change without notice
