NX Series - NX55P-2

12-inch / 1-inch - 1000 watts

One of Yorkville's best selling fully featured active loudspeakers has been redesigned. The 2nd Generation NX55P-2 features a new power amplifier design that delivers an earth shattering 1000 Watts Program (2000 Watts Peak) making it our best sending, most versatile cabinet in the NX Series.

Features

  • Integrated 2000 Watt Amplifier Peak (1000 Watts Program)
  • Max SPL 134dB Peak (128dB Continuous)
  • Dual purpose full range and wedge monitor format enclosure
  • Lightweight, high efficiency, high tech bi-amped power module
  • +/- 6dB input trim control for individual cabinet level adjustment
  • XLR and TRS inputs / outputs for easy connection and looping
  • Multi-input source mixer for direct inputs
  • Direct microphone input with level control
  • Two-way overall EQ controls
  • High quality 1-inch High Frequency driver
  • Next generation 12-inch high power woofer
  • Integrated flying hardware

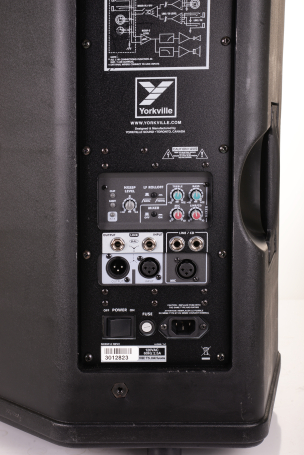

  • Recessed Mixer panel
  • Made in Canada

Overview

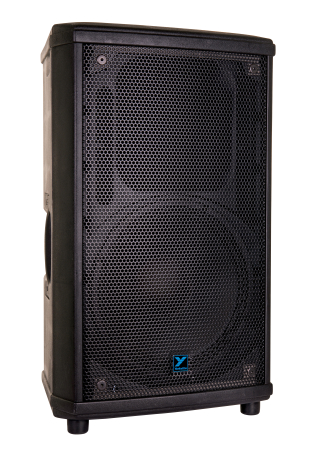

The NX55P-2 enclosure itself has been molded for maximum versatility. The trapezoid box is ideal for mounting in arrays, or for use as a monitor cabinet with well-protected inputs and controls. Designed for maximum versatility, the NX55P-2 can be used in any orientation, including close to walls, floors and in close arrays with multiple cabinets. Particular care was taken designing the components to reduce extraneous heat production.

The NX55P-2 has a versatile direct input system and built-in mixer. The mixer allows the loudspeaker to be used directly with a microphone and / or line source. The loop output allows additional active cabinets to be driven from one cabinet's mixer stage, or a series of cabinets to be driven from one source. If desired, the end user can combine multiple NX55P-2's using the mixer inputs on each cabinet and coupling the loop outputs. In this simple example you would have the ideal presentation system with two microphone inputs, two line inputs.

The microphone input has equalization and high pass filtering appropriate for vocal applications. The trim control allows looped cabinets to be individually adjusted in level. The NX55P-2 has user defeatable 100Hz high pass filters allow either cabinet to be used more efficiently with any Yorkville active subwoofer.

The NX55P-2 has a built in mixer that allows the loudspeaker to be used directly with a tuned microphone and / or line sources such as mixer, CD player or laptop computer. The loop output allows additional powered cabinets to be driven from one cabinet's mixer stage, or a series of cabinets to be driven from one source. If desired, the end user can combine a pair of the NX55P-2's using the mixer inputs on each cabinet and coupling the loop outputs. In this simple example you would have the ideal presentation system with two microphone inputs, two line inputs optimized line level audio source, complete within two speaker cabinets.

Multiple NX55P-2's can be linked together but a maximum of three "mixers" can be active at any one time. (Making three mic sources and six line sources available in any three or more cabinet array). The microphone input has equalization and high pass filtering appropriate for vocal applications. The trim control allows looped cabinets to be individually adjusted in level. This is valuable in applications where large numbers of cabinets are used such as clusters or in trade show applications.

The NX55P-2 has a selectable two position high-pass filter to limit extraneous low frequency rumble, or to crossover at the input so the loudspeaker can easily and effectively be used with subwoofers from a single full range source. Engaging the high pass filter also makes the NX55P-2 a more efficient and effective vocal monitor.

The NX55P-2 is an ideal loudspeaker for mobile presentation PA where high volume and superior sound quality is required. Multiple loudspeakers can easily be linked using mixer inputs from each loudspeaker to create a six input system... no external mixer required. (Up to three "mixer" sources can be used in any one system.)

Specifications

System Type 2-Way
Active or Passive Active
Program Power (Watts) 1000 Watts (2000 Watts Peak)
Biampable Self Powered
Biamp Operation Only Yes
Max SPL (dB) 134dB Peak (128dB Continuous)
Frequency Response (Hz +/- 3dB) 45 - 18k
Crossover Frequency (Hz) 2k
Driver Configuration 12-inch / 1-inch
HF Driver(s) 1.4-inch Aluminum Diaphragm w/ 1-inch exit
HF Dispersion (°H x °V) 80 x 50
HF Protection Thermal / Peak Limiter
LF Driver(s) 12-inch w/ 3-inch voicecoil
LF Protection Thermal / Overcurrent
HF Amplifier Type Two Tier Class H
LF Amplifier Type Class D
Power Cable Yes
Power Switch Yes
Power Consumption (typ/max) 60Hz 2.0A / 50Hz 1,0A
Inputs - 1/4" Jacks 2 (line input) 2 (link in/out)
Inputs - XLR 1 (mic) 2 (line in/out)
Input Sensitivity (Vrms Sine) +4dBv / 1.23V
Mixer Controls Mixer on/off switch
Mic Input Gain
Line Input Gain
Treble/Bass Tweak
Level Controls +/- 6dB Main Volume
EQ Controls 100Hz HP Filter (LF Rolloff)
Limiter Yes
LED Indicators Power/Clip/Limit
Feet Yes
Bar Handles 1 (Side)
Flying Hardware 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Optional Flying Hardware NXF Flyware
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials Molded Polypropylene
Grille Perforated Metal
Covering / Finish Black
Dimensions (DWH xbackW, inches) 12.25 x 16 x 26.5 x 9
Dimensions (DWH xbackW, cm) 31.12 x 40.6 x 67.3 x 22.9
Weight (lbs/kg) 41 / 18.6

Specifications subject to change without notice
