E10P

Elite 10-inch / 1-inch - 350 watts

Built for maximum versatility, the E10P input section will easily handle microphone or line level inputs through the XLR / TRS Combi-jack. Bass and Treble EQ in addition to Level control and a Mic/Line input gain selector ensure the E10P can handle virtually any audio source. A Live/Playback EQ preset selector, a 100Hz/50Hz low-frequency Roll-off selector (no crossover needed for subs), a full-time Limiter with LED indicator, a Clip LED, a Link output ensure the E10P can adapt easily to any audio application including use as a front-of-house PA loudspeaker, as a personal wedge monitor or as a single unit micro PA for a paging and playback system (no additional mixer required).

A lightweight, low-noise 300-Watt Class-D amplifier drives the low frequency 10-inch woofer while a two-tier 50-Watt amplifier capable of delivering an exceptionally clear and linear high-frequency response powers the 1-inch horn. An on-board active DSP based crossover ensures that the woofer and horn operate optimally while protecting the high quality speaker components.

The E10P features a powerful yet lightweight 10-inch low-frequency driver with a neodymium magnet, a silky-smooth 1-inch horn and driver and an enclosure built from voidless 15mm multi-ply Baltic birch for light weight with classic Elite ruggedness. That durability is engineered into the multi-angle enclosure pioneered for the Elite line that enables the E10P to operate vertically on a stand or horizontally as a stage monitor. For added convenience, the E10P easily converts between 120VAC, 230VAC or 240VAC.

Features

  • Integrated 650 Watt Amplifier (Peak - 325 Watts Program)
  • 10-inch Woofer / 1-inch Compression Driver
  • Max SPL 129dB Peak (123dB Continuous)
  • Bi-Amplified Power Module
  • Designed for Front-of-House or Monitor Applications
  • 100° x 25° Horn with Peak and Average Horn Protection
  • Two Band EQ with LF Roll-Off and Live/Playback Mode Switches
  • Combi-Jack XLR and 1/4-inch Input
  • Integrated All Metal Speaker Standmount Adaptor
  • Solid 5/8-inch (15mm) Birch Plywood Construction
  • Made in Canada

Specifications

System Type Powered Loudspeaker
Active or Passive Active
Power Rating (Watts) 325 Watts (650 Watts Peak)
Max SPL (dB) 129dB Peak (123dB Continuous)
Frequency Response (Hz +/- 3dB) 65 - 20k
Crossover Frequency (Hz) 1500
Driver Configuration 10-inch / 1-inch
HF Dispersion (°H x °V) 100 x 25
HF Protection Peak and Average Limiting
LF Protection Excursion, RMS
Cooling Scheme Convection
Power Cable Removable IEC
Power Switch Yes
Power Consumption (typ/max) 120VA / 200VA
Inputs 1 Combijack (XLR / 1/4-inch)
Input Impedance (Bal/UnBal) 4k ohms / 2k ohms
Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.35 at max
Level Controls Gain
EQ Controls Bass, Treble
Limiter Peak and Average limiting on horn and woofer
LED Indicators Power, Clip
Corners Metal
Feet Plastic Glides
Bar Handles One Side
Flying Hardware 5 (2 Top, 2 Bottom, 1 Pullback), 1/4" Threading
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8-inch) 11-ply Russian Birch
Port(s) Rear
Grille Perforated Metal
Covering / Finish Black Ozite (Carpet)
Dimensions (DWH xbackW, inches) 12 x 13 x 18.5 x 5.5
Dimensions (DWH xbackW, cm) 30 x 33 x 45 x 14
Weight (lbs/kg) 34 / 15.5

Specifications subject to change without notice

e10p

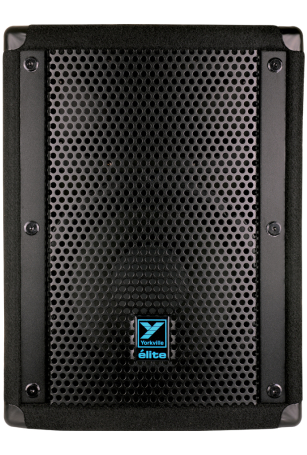

e10pfront

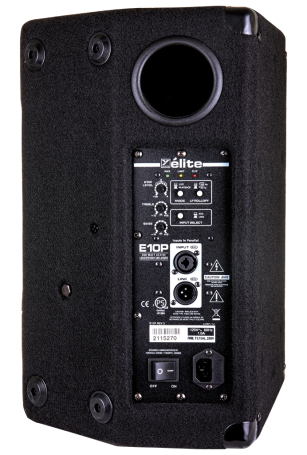

e10prear
e10ppanel

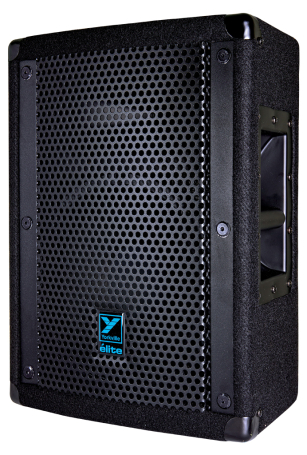

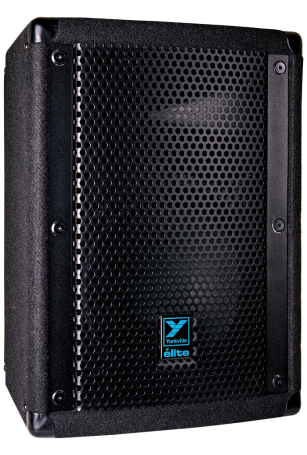

e10pangle-b
